TERP-43-3800-5W
Load, 4.3-10 female, 5 Watt

Rev : E | Rev date : 07 Sep 2021

The TERP-43-product family consists of coaxial loads supporting an operational frequency band from 698MHz up to 3800MHz. The products are ideally suited for termination of unused ports in distributed antenna systems or in RADIAFLEX® radiating cables systems. The loads feature an outstanding PIM performance to avoid interferences in 3G / 4G / 5G communication systems.

FEATURES / BENEFITS

  • Wideband coaxial load supporting all wireless services in the frequency band 698-3800MHz
  • Ideally suited for 2G / 3G / 4G / 5G wireless communication networks
  • PIM optimized design to avoid network interferences
  • 4.3-10 female interface

Technical features

General Specifications

Product TypeLoad
Techn. ApplicationIndoor

Electrical Specifications

Frequency Range MHz698 - 3800
Impedance Ohm50
Intermodulation (IM3)-160dBc @ 2 x 37dBm
Max. VSWR / Return Loss, dBVSWR/dB1.30/17.7
Total Input Power W5

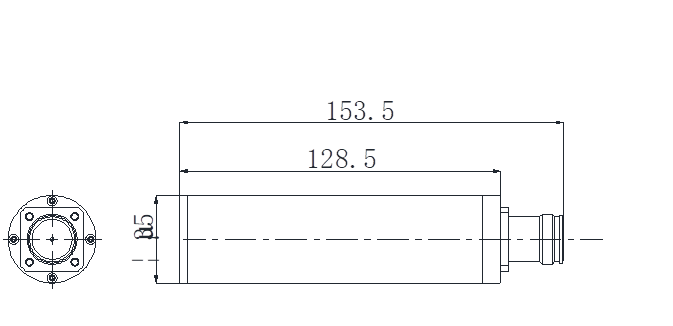

Mechanical Specifications

Input Connector Type4.3-10 female
Diameter mm (in)35 (1.378)
Length mm (in)153.5 (6.024)

Temperature Specifications

Temperature Range °C (°F)-25 to 65 (-13 to 149)
Environmental ClassIndoor

External Document Links

Notes

Derated power by -1.5%/°C above 50°C
