Unequal Divider/Tapper

Rev : A | Rev date : 26 May 2016
RFS TPS* series of Tappers unevenly split high power cellular signals in fixed ratios from 30:1 to 2:1 with minimal reflections or loss over the wireless bands in the range 350 - 2700 MHz.
The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the band. The lightweight design allows easy attachment to a wall.
Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced.


  • Splits in ratio 10:1
  • Small size and weight
  • 200 Watt average power rating
  • Minimal RF insertion loss
  • High reliability
  • N-female connectors
  • Low PIM

Technical features


Product TypeUnequal Divider/Tapper
Techn. ApplicationIndoor
Number of Input Ports1
Number of Output Ports2
Connector TypeN female

Electrical Specifications

Frequency Range MHz350 - 960
1710 - 2700
Impedance Ohm50
Insertion Loss max. dB0.4
Max. VSWR / Return LossVSWR/dB1.30/17.7 (1.3)
Intermodulation (IM3)150 dBc with 2x20 W tones
Coupling Value dB10.4
Coupling Flatness max. dB±1.5
Power Ratio - between Outputs dB10:1/10.0
Input Power (Splitter mode) avg. W200

Temperature Specifications

Temperature Range °C (°F)-10 to +55 (14 to +131)

Mechanical Specifications

Height mm (in)101 (3.98)
Width mm (in)25 (0.98)
Length mm (in)25 (0.98)

Testing and Environmental

Environmental ClassIP65

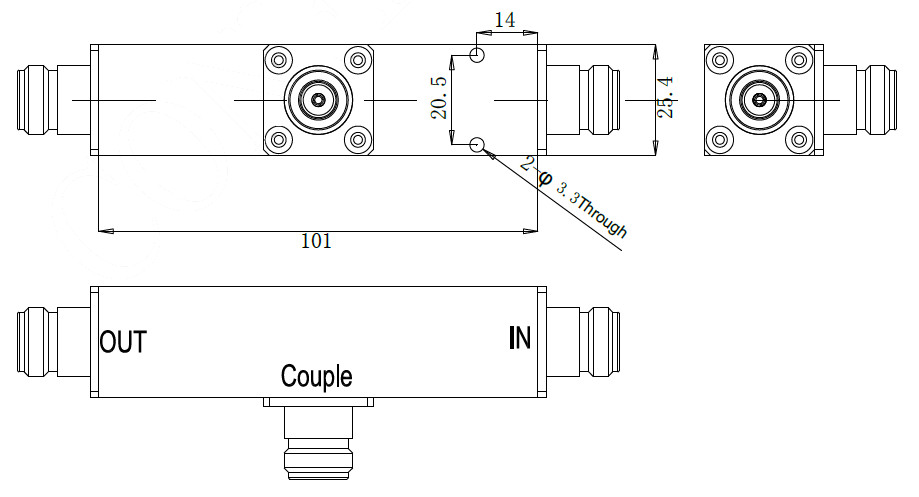

Dimensions in mm
