TPS6-43-694/3800
Unequal Divider/Tapper

Rev : B | Rev date : 27 May 2020
RFS TPS* Tapper product family has been designed to support a variety of wireless applications in the frequency band from 694 to 3800MHz. The units couple off a defined fraction of a RF signal from typically 3 to 30 dB with minimal reflections or loss. The broad frequency range is ideally suited for 3G / 4G / 5G multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables. Notably, these products feature a low level of network interferences due to their PIM optimized desing.

FEATURES / BENEFITS

  • Split ratio 4:1 / 6dB
  • 4.3-10-female interfaces
  • PIM optimized design (160dBc @2x43dBm)
  • Low insertion loss
  • High power handling
  • Small size, Low weight


TPS6-43-694/3800 (similar product illustration)

Technical features

Structure

Product TypeUnequal Divider/Tapper
Techn. ApplicationIndoor
Number of Input Ports1
Number of Output Ports2
Connector Type4.3-10 female

Electrical Specifications

Frequency Range MHz694 - 3800
Impedance Ohm50
Insertion Loss max. dB1.1
Max. VSWR / Return LossVSWR/dB1.30/17.7 (1.3)
Intermodulation (IM3)160dBc (2x43dBm)
Coupling Value dB7
Coupling Flatness max. dB+1.0 / -2.0
Power Ratio - between Outputs dB4:1 / 6dB
Total Input Power W400

Temperature Specifications

Temperature Range °C (°F)-25 to +65 (-13 to +149)

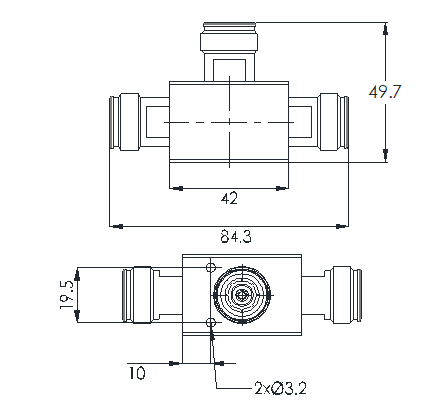

Mechanical Specifications

Height mm (in)49.7 (1.96)
Width mm (in)19.5 (0.77)
Length mm (in)84.3 (3.32)

Testing and Environmental

Environmental ClassIP65
