UC230
Spare Capsule for Gas Tube Surge Arrestor

Rev : C | Rev date : 02 Dec 2024

230 V gas discharge arrestor for *-UCX-01 Series.

FEATURES / BENEFITS

Sparkover voltage:

  • Static (100 V/s) 195 V to 265 V
  • Dynamic (1 kV/µs) ≤ 750 V

RF power rating: ≤ 180 W (unmodulated; VSWR=1;sea level; 40 °C)

Arc (residual) voltage: ≤ 25 V

Allowed surge current:

  • SingIe pulse (8/20 µs) min. 25 kA
  • 5 pulses in 3 min. (8/20 µs) min. 10 kA

Isolation resistance: >= 1 GOhm

Capacitance: ≤ 1 pF

Free from radioactivity


Technical features

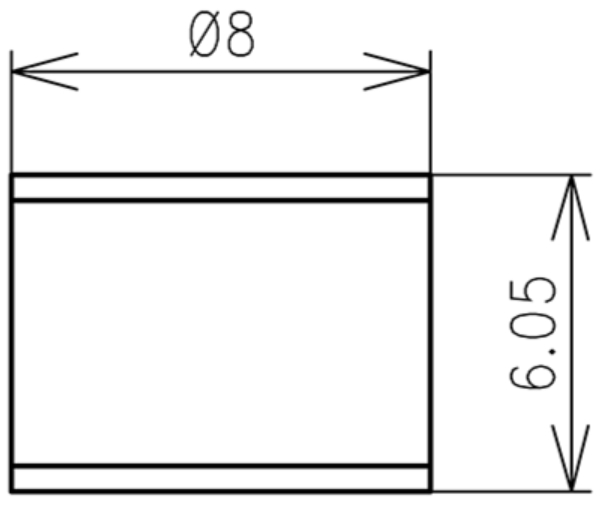

Structure

Product LineCoaxial Cable Components
Product TypeSurge Arrestor
Surge Arrestor TypeSpare Capsule

Packaging Information

Package Quantity1
