158EIA-NF
Coaxial Adapter 1 5/8" EIA - N female

Rev : B | Rev date : 24 Apr 2025

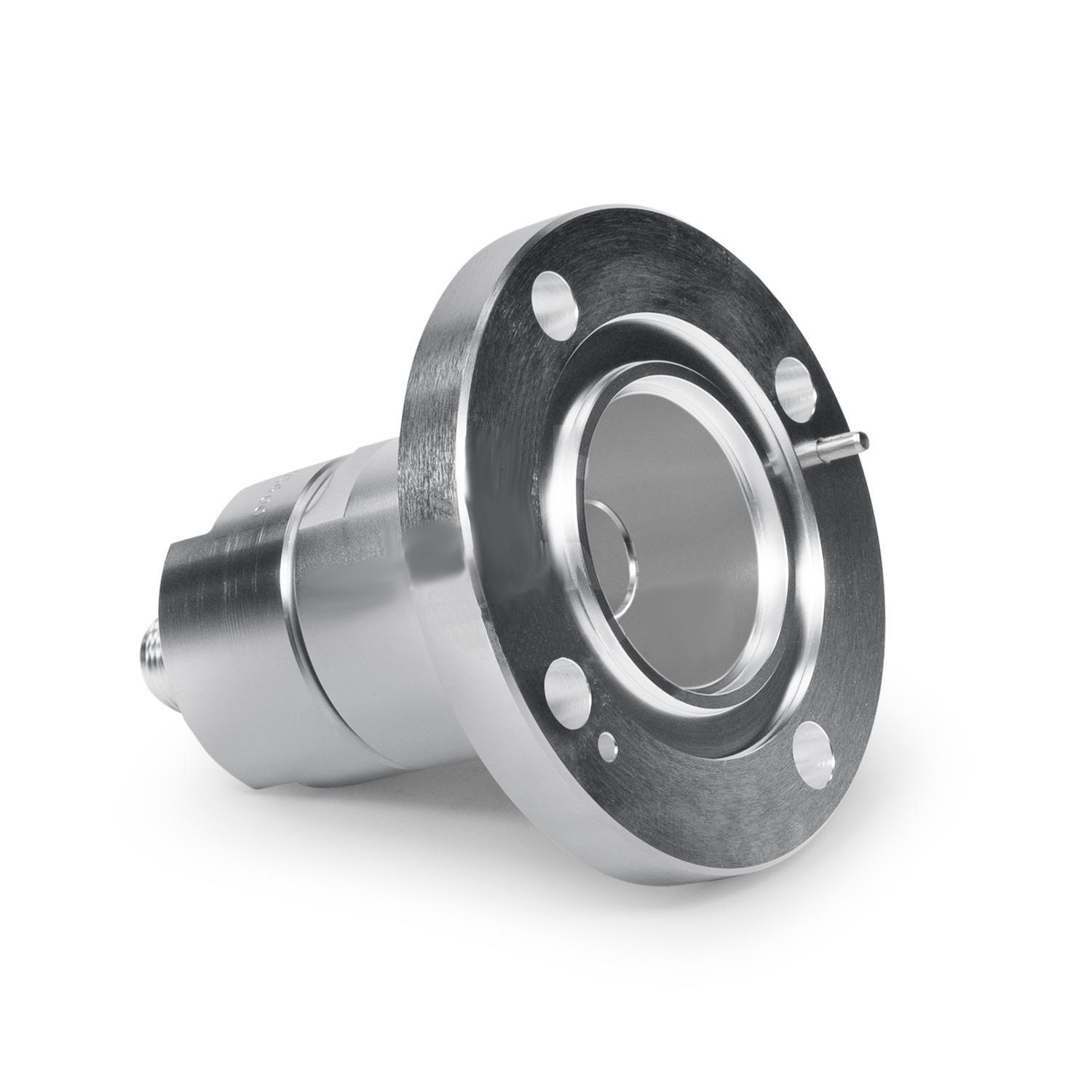

Coaxial Adapter, 1 5/8" EIA / N Female

FEATURES / BENEFITS


Technical features

Structure

Product LineCoaxial Cable Components
Product TypeCoaxial Adapter

Mechanical Specifications

Connector A1 5/8" EIA (50 Ω) acording IEC 60339-2
Center Contact Connector Acopper-alloy, silver plated
Outer Contact Connector Acopper-alloy, silver plated
Connector BN female (50 Ω) according IEC 61169-16
Center Contact Connector Bcopper-alloy, silver plated
Outer Contact Connector Bcopper-alloy, silver plated
DielectricPTFE
Sealing classIP68, connected

Electrical Specifications

Frequency Range - MHzDC - 2700
VSWR, Return LossVSWR (dB)0-1000 MHz: 1.02 (40.09)
1000-2700 MHz: 1.04(33.15)
Residual Voltage

1500 V

Average Power

300 W

Temperature Specifications

Operation Temperature °C (°F)

-45 to 85 (-49 to 185)

Packaging Information

Package Quantity1
Weight kg (lb)0.9 (1.984)


Length: L = 84.7 mm
