AC7-M8
AC Mounting hardware for Anchor Bar A7 profile

Clamping plate with M8 thread made of aluminium for fixation onto Anchor Bar A7 profile

FEATURES / BENEFITS

Lateral lugs for easy handling during installation


Technical features

General Specifications

Product LineCoaxial Cable Accessories
Radiating Cable Accessories
Product TypeHanger
Hanger TypeClamping plate for anchor bar
Installation Hardware TypeAnchor bar with slotwidth 18 to 22 mm (0.7 to 0.9 inch)
Cable TypeCoaxial Foam Dielectric
Radiating Cable

Mechanical Specifications

Number of Cable / Waveguide Runs1
MaterialAluminium

Temperature Specifications

Installation Temperature °C (°F)-50 to 85 (-58 to 185 )
Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity1
Weight per piece kg (lb)0.012 (0.026)

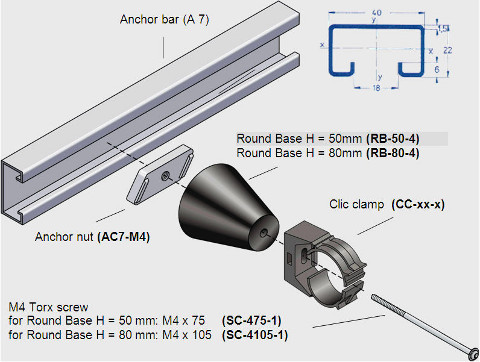

Installation example

External Document Links

Notes
