BD150XWX Series
BD150XWX Automatic Dehydrator, 110-125 VAC 50/60Hz or 208-253 VAC 50/60Hz
Rev : F | Rev date : 10 Jan 2025
The dehydrator removes the moisture from damp ambient air to deliver a reliable, constant, ondemand source of dry and pressurised air, which is critical to prevent the systems from performance and reliability degradation by condensation. The BD1500W series dehydrators offer pressurization solutions to transmission lines and antennas in both telecom and broadcasting applications. Its low pressure models (suffix LP) are suitable for applications where reduced pressure is required, for example, pressurisation of broadcast antenna radomes, microwave waveguides and other transmission lines. The inherent reliability of the BD series design, combined with the high output capacity and remote real-time data capabilities make these units an ideal choice for pressurisation of systems at unattended sites. The BD1500W Series dehydrators employ a fully digital operating platform offering the most accurate readings of operating variables, either from the front panel or by a remote IP connection.
FEATURES / BENEFITS
- Air Delivery up to 1770L/h
- Operating pressure can be changed by a simple adjustment at the dehydrator
- Available in 110VAC or 220VAC Power Supply • Remote Real-Time Data and Alarm Reset Capabilities
- SNMP Communication Compatible
- Digital Display of All Operating Parameters
- Imperial and Metric Unit of Measure Options
- 8,000 Hour Maintenance Interval
- Compact and Lightweight
- Versatile Installation, Standalone, Optional Rack/Wall Mount
- Ultra Quiet Compressor

General Specifications |
---|
Product Type | | Automatic Dehydrator | Model | | BD1500W | BD1500WLP | BD1502W | BD1502WLP | max. System Volume @Sea Level | l | 14863 | Output Capacity | l/h | Normal: 1416 Continuous; Maximum: 1770 Emergency | Output Pressure | kPa (PSIG) | 13.8 - 103.4 (2 - 15) | 2.07 - 51.71 (0.30 - 7.5) | 13.8 - 103.4 (2 - 15) | 2.07 - 51.71 (0.30 - 7.5) | Ouput Air Relative Humidity | % | >2 RH | Number of Outlets | | 1 | Output Fitting | | Single, 3/8" Press-to-Lock tube fitting | Noise Level at 3m | dBA | 48 | Network Management | | via Web Browser or SNMP through RJ-45 Ethernet Connection |
|
ELECTRICAL SPECIFICATIONS |
---|
Operating Voltage | V | 110 - 125 VAC, 50 / 60Hz Note: 1 | 208 - 253 VAC, 50 / 60Hz | OperatingCurrent | A | 7 | 3.5 |
|
Mechanical Specifications |
---|
Dimension H x D x W | cm | 68.6 x 30.8 x 43.8 | Weight | Kg | 36.3 |
|
Environmental |
---|
Ambient Temperature Range | °C | +5 to +30 Note: 2 |
|
Alarms |
---|
Alarm | | Standard Alarm - Complete readings of all critical measurement points, individual alarm indication display, including SNMP communication.
High Outlet Pressure Alarm
Low Outlet Pressure Alarm
High Humidity Alarm
High Flow Rate Alarm
High Cabinet Temperature Alarm
High Compressor Last Run Time Alarm |
|
Accessories |
---|
Model Name | Description | P018302 | 6-Month Maintenance Kit for BD150*W* Series | P012252 | 8000 Hour Maintenance Kit for BD150*W* Series | P011674 | Universal Rack Mounting Kit for BD150*W* Series | P011773 | Wall Mounting Kit for BD150*W* Series | GLK-1 | Start up Kit for Dehydrator | PWM2G | 2-Port Manifold with Pressure Gauges | PWM2GC | 2-Port Manifold with Pressure Gauges & Valves | MLK-2 | Start up Kit for 2-Port Manifold | PWM4G | 4-Port Manifold with Pressure Gauges | PWM4GC | 4-Port Manifold with Pressure Gauges & Valves | MLK-4 | Start up Kit for 4-Port Manifold | PWM8G | 8-Port Manifold with Pressure Gauges | PWM8GC | 8-Port Manifold with Pressure Gauges & Valves | MLK-8 | Start up Kit for 8-Port Manifold | TUBE-38OD-PON | Gas inlet adaptor 1/8” NPT for 3/8” OD tube | TUBE-M12-G18 | Gas inlet Adapter M12x1.5 - G1/8 |
|

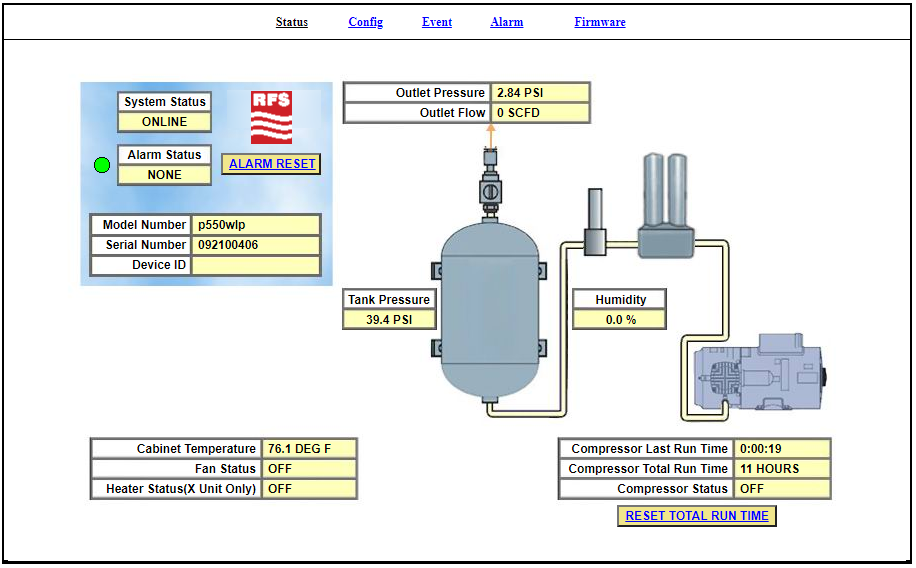

Screen image showing remote display of dehydrator status and alarms
Notes
Note 1: (15 Amp service recommended)
Note 2: Unit will go into SHUTDOWN mode if cabinet temperature exceeds 49°C
