CDS15-43-350/2700-01
15dB Directional Coupler

Rev : P1 | Rev date : 31 Jan 2025

PRODUCT DESCRIPTION

RFS CDS*-43 Directional Coupler Series have been designed for a variety of wireless applications in the frequency band from 350 to 2700 MHz. The wide frequency range allows to use these couplers for multiband wireless Distributed Antenna Systems (DAS) or in combination with RADIAFLEX® radiating cable products. The units couple off a defined fraction of the signal from 6 to 30 dB fulfilling highest RF performance requirements by minimizing reflections or RF loss combined with a compact design. As all passive RFproducts, the CDS**-43 series ensures highest reliability and maintenance free operation.

FEATURES / BENEFITS

  • Broadband 350-2700MHz
  • 4.3-10-female interfaces
  • PIM optimized design
  • Ideal for all kind of DAS applications
  • Low insertion loss
  • High power handling
  • Small size, low weight

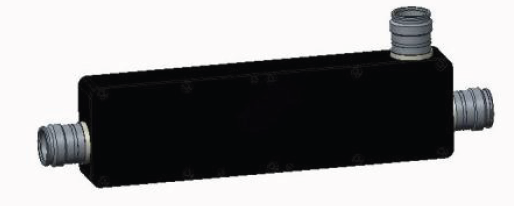

3D Model of the Product

TECHNICAL FEATURES

Electrical Specifications
Frequency Range MHz 350-2700
Input Power W 200
PIM 3rd @2*43 dBm dBc 160
Input Impedance Ohm 50
Max. VSWR / Return Loss VSWR / dB 1.22 / 20.0



Mechanical Specifications
Connectors   4.3-10 Female
Number of Input Ports   1
Number of Output Ports   2
Temperature Range °C -25 to +65
IP Level   IP65
RoHS   Compliant

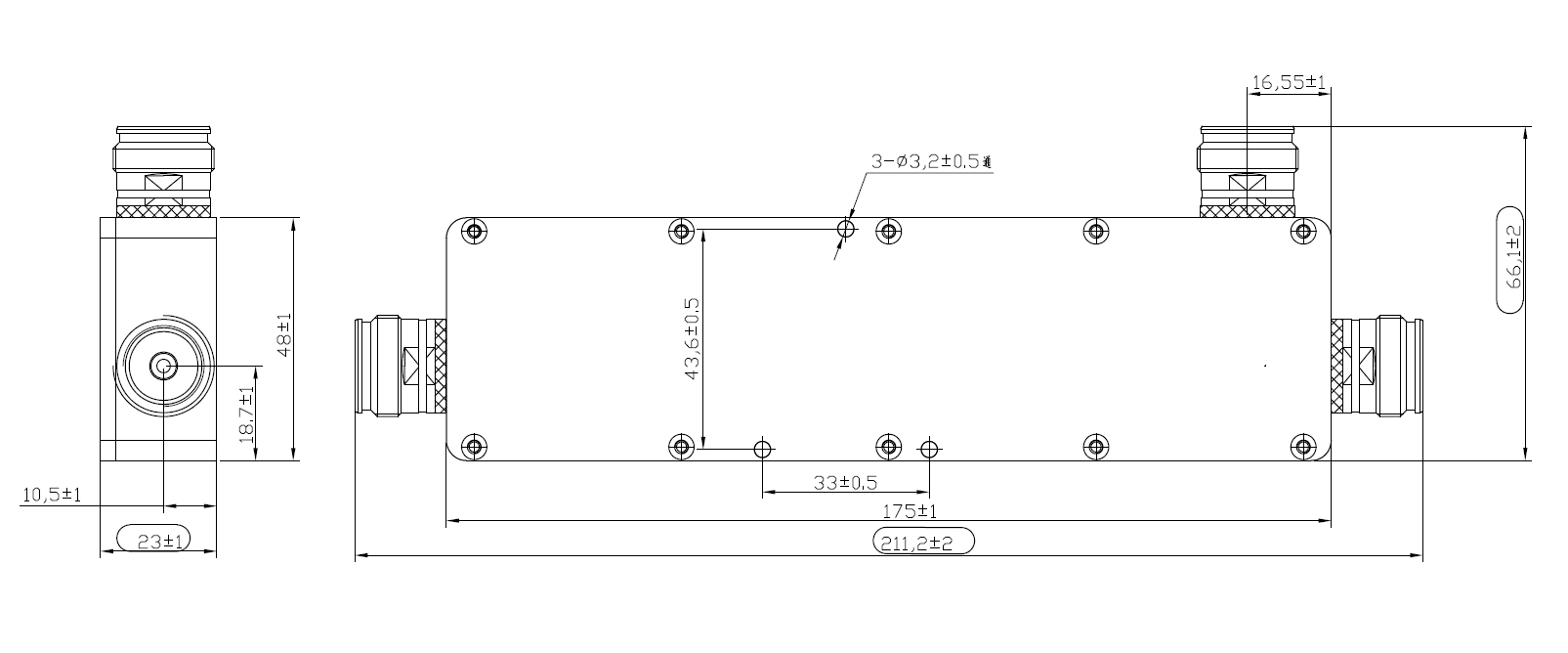

Dimensions Height*Width*Length mm 23*66*211
Weight Kg 0.5

Model Number Specifications
Model Number   CDS6-43-350/2700-01 CDS10-43-350/2700-01 CDS15-43-350/2700-01
Coupling Value dB 6 10 15
Insertion Loss dB 1,8 0,8 0,5
Isolation dB 25,5 29,5 34,5
Coupling Flatness max. dB

±1.15@380-2700MHz

±1.5@350-380MHz

±1.7@350-380MHz

±1.25@380-2700MHz

±1.7@350-380MHz

±1.25@380-2700MHz

Model Number Specifications
Model Number   CDS20-43-350/2700-01 CDS30-43-350/2700-01
Coupling Value dB 20 30
Insertion Loss dB 0,25 0,3
Isolation dB 39,5 49,5
Coupling Flatness max. dB

±1.8@350-380MHz

±1.25@380-2700MHz

±1.8@ 350-380MHz

±1.5@ 380-2700MHz
