FOGT-01x12SA2-F00
HYBRIFLEX® Fiber Optic Drop Cable, 12 Fiber Single Mode, LSZH, Indoor
Rev : A | Rev date : 29 Nov 2021
HYBRIFLEX fiber only round drop cable, multi-fiber single mode, gel free, water blocking, LSZH, indoor cable with integrated rip cord. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Conventional" RoF solution.
FEATURES / BENEFITS
- Incoprates multiple, single mode optical fibers ensuring future proof connectivity for RoF (and other) high bandwidth, multi wavelength applications
- Fibers housed in high-modulus plastic and with water-blocking yarn around
- Aramid and water blocking glass-fiber yarns are applied as strength member
- High quality raw material guarantees the long service life of cable
- Flame retardant, LSZH materials for use inside buildings
- Integrated rip cord
Structure |
|---|
| Cable Type | | Fiber optic cable | | Fire Performance | | Flame Retardant | | Number of Fiber | | 12 | | Optical Fiber Color | | Red/Green/Blue/Yellow/Grey/Violet/Brown/Orange/White/Pink/Black/Aqua |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 8.5 (0.33) | | Cable Weight | kg/m (lb/ft) | 0.085 (0.057) |
|
Cable Jacket |
|---|
| UV-Protection Individual and External Jacket | | Yes for External Jacket Only | | Jacket Material | | LSZH Black |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | G657-A2 Single Mode, Bend Tolerant | | Core/Clad | µm | 9 /125 | | Secondary Protection Nominal | µm (in) | 240 (0.009) | | Single Bending Radius | mm (in) | 10 (0.394) | | F/O Standards (Meets or Exceeds) | | ITU-T G657A2; RoHS Compliant | | Fiber Attenuation | dB/km | Max: ≤ 0.37dB/km@λ=1310nm & ≤0.24dB/km λ =1550nm | | Zero Dispersion Slope | | ≤0.092 ps/kmꞏnm2 | | Dispersion (1285 - 1340 nm) | | -3.5 ~ 3.5ps/(nmꞏkm) | | Mode Field Diameter (@ 1310 nm) | | 8.8 | | Cutoff wavelength cable | | ≤1260 nm |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -40 to 70 (-40 to 158 ) | | Operation Temperature | °C (°F) | -30 to 70 (-22 to 158 ) | | Installation Temperature | °C (°F) | -5 to 60 (23 to 140 ) | | LSZH Specification | | IEC 60332-1 |
|
Notes

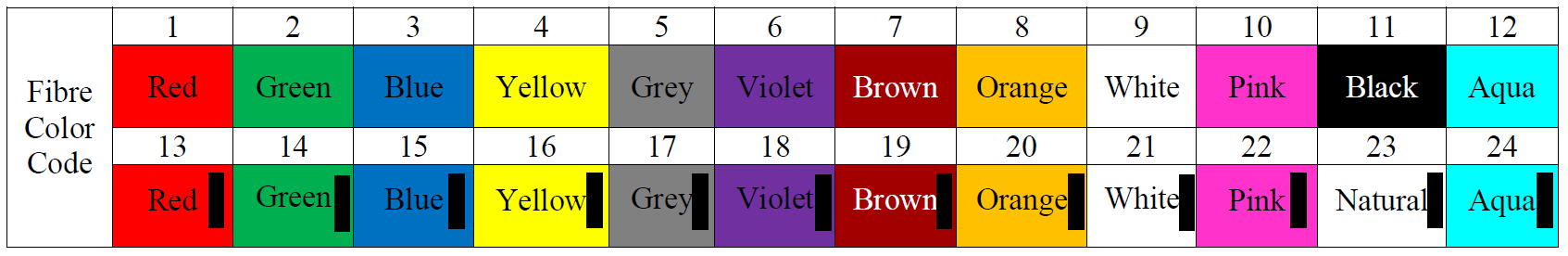

When more than 12 fibers, fibers 13-24 will follow same color scheme and additionally be marked with a black tracer.
