FONF-FF12S-XXXM-01
HYBRIFLEX® Fiber Optic Cable Assembly, 2 x MTP12/APC Female to 2 x MTP12/APC Female, LSZH, Indoor
Rev : B | Rev date : 03 Mar 2022

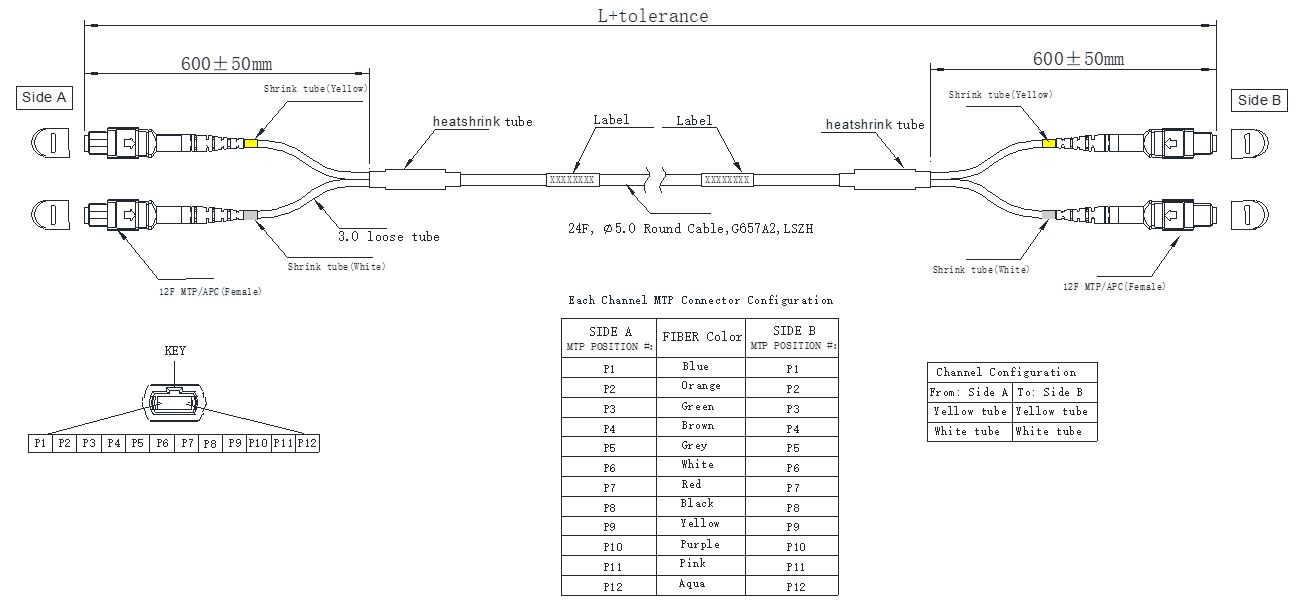

HYBRIFLEX fiber only cable assemby, 24 single mode fibers, pre-terminated with 2x MTP12 female connectors on both ends of this LSZH, indoor cable. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play"
FEATURES / BENEFITS
- High precision MTP/APC fiber connector provides low insertion loss, high return loss, excellent stability and durability
- Available in a range of standard or customized lengths to simplify network design
- MTP connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
- Mechanical branching system ensures full strain relief
- RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills
Notes
Product image

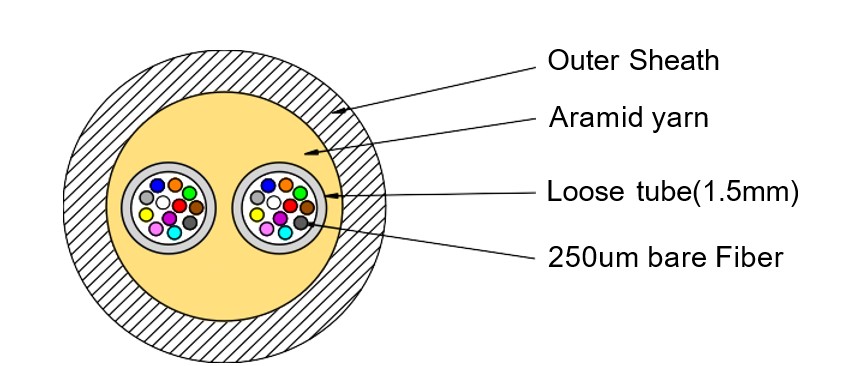

Cable Structure
Structure |
|---|
| Cable Type | | 24 single mode fibers (G657A2), LSZH jacket, yellow | | Number of Fiber | | 24 |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 5 (0.197) | | Minimum Bending Radius, (Operating) | mm (in) | 50 (1.969) | | Minimum Bending Radius, (Installation) | mm (in) | 100 (3.937) | | Tensile Strength (Operating) | | 130 N | | Tensile Strength (Installation) | | 440 N | | Crush Resistance (Operating) | | 300 N / 10 cm | | Crush Resistance (Installation) | | 1000 N / 10 cm |
|
Cable Jacket |
|---|
| Jacket Material | | LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Loose-tube, Single Mode | | Core/Clad | µm | 9 /125 | | Cable Diameter mm (in) | | 3 (0.118) | | F/O Cable Jacket | | LSZH | | F/O Standards (Meets or Exceeds) | | G657A2 | | Fiber Termination End 1 | | 2 x MTP/APC female, single mode, yellow housing, IEC 61754-7 | | Fiber Termination End 2 | | 2 x MTP/APC female, single mode, yellow housing, IEC 61754-7 | | Fiber Attenuation | dB/km | ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm | | Connector Insertion Loss | | MTP(SM): Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B | | Connector Return Loss | | MTP(SM): Min. 60 dB @ 1310&1550nm / IEC 61300-3-6 |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -25 to 70 (-13 to 158 ) | | Operation Temperature | °C (°F) | -20 to 60 (-4 to 140 ) | | Installation Temperature | °C (°F) | -10 to 55 (14 to 131 ) |
|
Ordering Information |
|---|
| >30 m |
1 PC drum |
| <30 m |
1 Pc in a bag |
|
Additional Assemblies |
|---|
| Length | Model Name | | 10 m | FONF-FF12S-010M-01 | | 20 m | FONF-FF12S-020M-01 | | 30 m | FONF-FF12S-030M-01 | | 40 m | FONF-FF12S-040M-01 | | 50 m | FONF-FF12S-050M-01 | | 60 m | FONF-FF12S-060M-01 | | 70 m | FONF-FF12S-070M-01 | | 80 m | FONF-FF12S-080M-01 | | 90 m | FONF-FF12S-090M-01 | | 100 m | FONF-FF12S-100M-01 | | 110 m | FONF-FF12S-110M-01 | | 120 m | FONF-FF12S-120M-01 | | 130 m | FONF-FF12S-130M-01 | | 140 m | FONF-FF12S-140M-01 | | 150 m | FONF-FF12S-150M-01 | | 160 m | FONF-FF12S-160M-01 | | 170 m | FONF-FF12S-170M-01 | | 180 m | FONF-FF12S-180M-01 | | 190 m | FONF-FF12S-190M-01 | | 200 m | FONF-FF12S-200M-01 |
|
