HA-AOPC-01
AOPC Connector Sealing for Nokia RRUs

Rev : B | Rev date : 03 May 2022

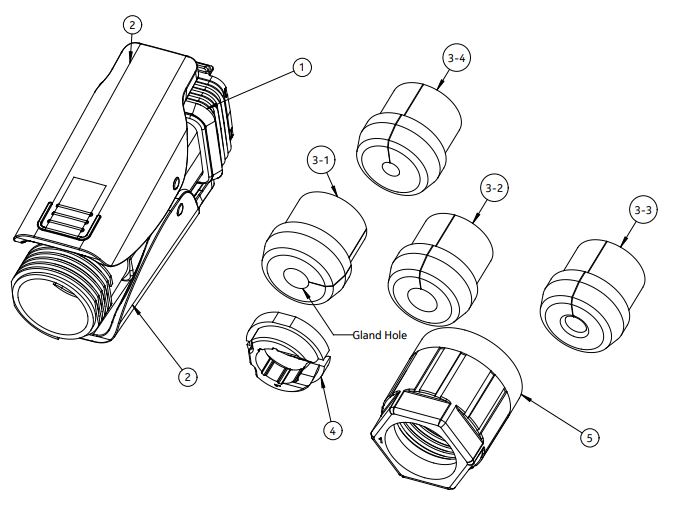

The AOPC is a field installable sealing kit which fits over the fiber jumper from RFS and can be installed in the field on site.

This sealing kit fits to the RRUs from Nokia. In the Kit are different diameters of sealings for different diameters of cables.

The diamter of the supported cables are 4 (3,8 - 4,2 mm), 5 (4,8 - 5,2 mm), 6 (5,3 - 6,2 mm) and 7 (6,8 - 7,2 mm).







FEATURES / BENEFITS

- flexible handling of the fiber jumper because of field installable sealing


Technical features

General Specifications

Product TypeSealing Kit

Mechanical Specifications

MaterialPlastic with rubber inlets
Weight kg (lb)0.036 (0.079)

Testing and Environmental

Storage Temperature °C (°F)-20 to 50 (-4 to 122 )
Operation Temperature °C (°F)-40 to 75 (-40 to 167 )
Installation Temperature °C (°F)-20 to 60 (-4 to 140 )
Sealing ClassIP67
UV-ProtectionYes

External Document Links

Notes
