I-ATO5-698/4000M
Indoor Omnidirectional MIMO Antenna 698-4000 MHz

The omnidirectional antenna I-ATO5-698/4000 is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks. The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.

FEATURES / BENEFITS

  • Wideband omnidirectional antenna supporting all wireless services in the frequency bands 698-960 / 1710-2700 / 3400-4000MHz
  • Typically used in indoor distribution of 2G / 3G / 4G / 5G wireless services in all standardized frequency bands
  • PIM optimized antenna design (150dBc @2x20W)
  • Aesthetical visual appearance, compact and light weight
  • Low loss pigtail with N-female connector
  • Ideal for 4G LTE multi-band MIMO applications


I-ATO5-698/4000

Technical features

General Specifications

Product TypeOmnidirectional Antenna
Techn. ApplicationIndoor

Mechanical Specifications

Number of Input Ports2
ConnectorsN female
Height (Less Connectors) mm (in)40 (1.57)
Diameter (Less Connectors) mm (in)218 (8.58)
Weight kg (lb)0.5 (1.1)

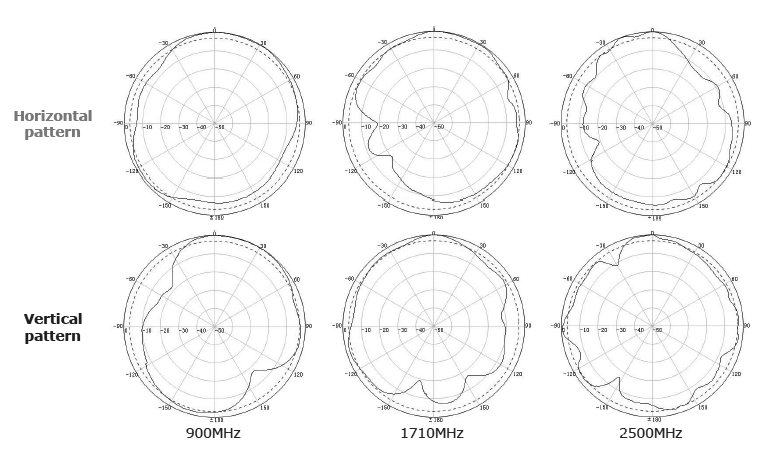

Electrical Specifications

Frequenz MHz 698-960 1710-2700 3400-4000
Gain, typ. dBi 3.5 4.5 5.0
VSWR 2.0 2.0 2.0
Beamwidth, Vertical, typ. ° 90 45 35
Impedance, OhmΩ50
PolarizationLinear x2
Intermodulation (IM3)-150 dBc
Total Input Power max. W50

Material

Radome MaterialABS
Radome ColorWhite (RAL 9003)

Temperature Specifications

Operation Temperature °C (°F)-40 to 55 (-40 to 131 )

Testing and Environmental

Environmental ClassIndoor

External Document Links

Notes

Ceiling mounting via hole (standard)

Typical isolation between polarizations: >17dB (698-960MHz), >20dB (1710-2700MHz, 3400-4000MHz)
