MULTIFLEX-L78
CELLFLEX®MULTIFLEX Jumper Assembly with low loss coax, LCF78 feeder

Rev : P2 | Rev date : 16 Sep 2021

MULTIFLEX Jumper-Cable assemblies are the simple solution for those who like to have a very low loss transmission jumper with highest flexibility at both connection ends. RFS site kitting services offers a full assembled Jumper containing feeder-cable from LCF78-50 to LCF158-50, and Jumper cable such as super flexible SCF12-50 for both endings.

FEATURES / BENEFITS

  • Stable premium VSWR, outstanding and consistent intermodulation performance - 4.3-10 side not relying on coupling torque
    Improves network performance, reduces the number of dropped calls and avoids revenue loss.
  • Waterproof to IP 68
    No downtime risk, secures revenue.
  • Smaller connector footprint for 4.3-10
    Enables tighter spacing of connections for antennas and RRHs.
  • Available with standard ""J"" or flame retardant ""JFN"" jacket types
    Usable on global basis in all applications.


7MRS12-7MRS12-L78J0200

Technical features

Jumper Features

ApplicationMain feed transitions to equipment, GPS lines, intended for outdoor usage (J) or indoor usage (JFN)
Installation Temperature °C (°F)-40 to 60 (-40 to 140 )
Storage Temperature °C (°F)-70 to 85 (-94 to 185 )
Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Fire Performance ClassHalogeen free (B2ca option available)
Sealing ClassIP68
RoHSCompliant to RoHS (EU) and CRoHS (China)
Third Order Intermodulation dBc-161 static & dynamic (-165 typical)
Maximum Operating Frequency GHz6

Cable Details

Cable TypeLCF78-50SCF12-50
Cable weight0.35 Kg/m (0.23 lb/ft)0.135 Kg/m (0.09 lb/ft)
Min bending radius, single bending120 mm (5 in)32 mm (1.3 in)
Min bending radius, multiple bending250 mm (10 in)32 mm (1.3 in)
bending moment13 Nm (10 lb*ft)2.5 Nm (1.84 lb*ft)
Tensile strength1440 Nm (324 lb)650 Nm (146 lb)
Recommended maximum clamp spacing0.8 / 1 m (2.75 / 3.25 ft)0.3 / 0.5 m (1 / 1.64 ft)
Velocity factor88 %77 %
Capacitance74 pF/m (22.5 pF/ft)86 pF/m (26 pF/ft)
Jacket Spark tested up to:8000 V RMS5000 V RMS
Inner conductor DC resistance2.04 Ω/Km (0.62 Ω/ 1000 ft)2.97 Ω/Km (0.9 Ω/ 1000 ft)
Outer conductor DC resistance2 Ω/Km (0.61 Ω/ 1000 ft)6.5 Ω/Km (1.98 Ω/ 1000 ft)

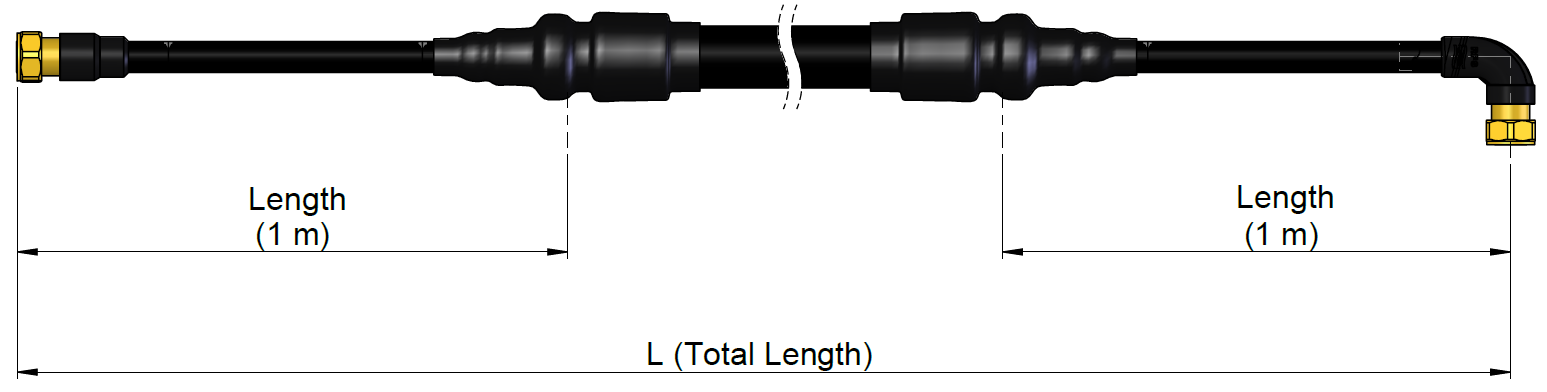

Schematic sktech of a MULTIFLEX Jumper. The total assembly length "L" is defined by the variable length of the feeder cable plus 2 m jumper lengths.

Electrical Performance

Insertion loss @20°C (A = L*A1 + 2*A2)Adjustable LCF78 feeder (A1)1m Jumpers (A2 )
Attenuation @1 GHz0.04 dB/m0.20 dB
Attenuation @2.2 GHz0.062 dB/m0.315 dB
Attenuation @2.7 GHz0.070 dB/m0.352 dB
Attenuation @3.8 GHz0.086 dB/m0.423 dB
Attenuation @6 GHz0.113 dB/m0.543 dB
Frequency [MHz]Straight Con. dB (VSWR)Angle Con. dB (VSWR)
0 - 1000> 28.0 (≤1.08)> 28.0 (≤1.08)
>1000 - 1700> 28.0 (≤1.08)> 26.4 (≤1.10)
>1700 - 2200> 28.0 (≤1.08)> 26.4 (≤1.10)
>2200 - 2700> 26.4 (≤1.10)> 24.9 (≤1.12)
>2700 - 3800> 23.1 (≤1.15)> 20.8 (≤1.20)
>3800 - 5000> 20.8 (≤1.20)> 19.1 (≤1.25)
>5000 - 6000> 17.7 (≤1.30)> 17.7 (≤1.30)


Modelname nomenclature
