NF-RE60
Elliptical Waveguide to Type N Female Coax Adapter

The high performance coaxial cable to waveguide adapter is specifically designed to provide the highest quality interface while simplifying and speeding up the attachment of connectors to the RADIAFLEX® radiating waveguide RE60. The connector provides outstanding value to users because they permit quick, easy and reliable installation at any location, thereby allowing the operator flexibility while saving installation time.

FEATURES / BENEFITS

  • Waveguide installation - the flange adapter provides proper matching of elliptical waveguide flanges to N-female connector.
  • Time-saving and easy installation - reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance. Saves time and provides cost savings.
  • Robust mechanical design - ideally for in-tunnel applications.
  • Excellent electrical performance - low VSWR
  • Totally waterproof - assures safe, long term operation.


NF-RE60

Technical features

General Specifications

Transmission Line TypeElliptical Waveguide
Cable SizeRE60
Connector InterfaceN female
Connector TypeAxially in the direction of the installed waveguide
Sealing MethodShrinking Sleeve
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
VSWR, Return LossVSWR (dB)5.0 < f ≤ 6.0 GHz: 1.12 (24.9)

Mechanical Specifications

Plating Outer/InnerBrass
Length mm (in)75 (2.95)
Outer Diameter mm (in)69 (2.72)
Weight kg (lb)0.7 (1.54)

Testing and Environmental

Waterproof LevelIP68

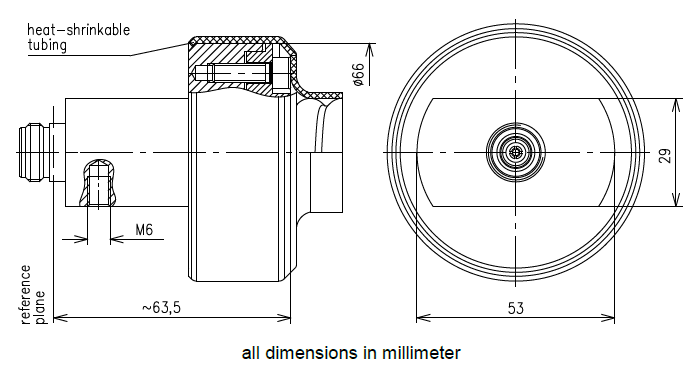

Sketch NF-RE60

External Document Links

Notes

Power Rating: 10 Watt
Earthing: via M6 screw
