PDS3DE-694/3800
3 Way Power Divider

Rev : P2 | Rev date : 28 Mar 2023
This PDS*E series are Power Splitters, designed to evenly split high power cellular signals with minimal reflections or loss. They are specified to cover 694- 3800 MHz. The wide frequency ranges of these models allow use with multiband antennas and leaky cable systems. With few solder joints and an air dielectric, the loss is minimal and reliability enhanced.

FEATURES / BENEFITS

  • Multiple-Band Frequency Ranges
  • 200 Watt Power Rating
  • High Reliability
  • Low Cost Design for Outdoor Application
  • Low Specified PIM
  • 716-female Connectors


Technical features

Structure

Product TypePower Divider
Techn. ApplicationIndoor
Number of Input Ports1
Number of Output Ports3
Connectors716-female

Electrical Specifications

Frequency Range MHz694 - 3800
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB1.25 / 19.1
Split Loss dB5.1
Max Rippel dB0.3
Intermodulation (IM3)-155 dBc with 2x43 dBm tones
Total Input Power W200

Temperature Specifications

Temperature Range °C (°F)-25 to +65 (-13 to +149)

Mechanical Specifications

Height (Less Connectors) mm (in)25 (0.98)
Width (Less Connectors) mm (in)25 (0.98)
Length (Less Connectors) mm (in)200.7 (7.9)

Testing and Environmental

Environmental ClassIP65

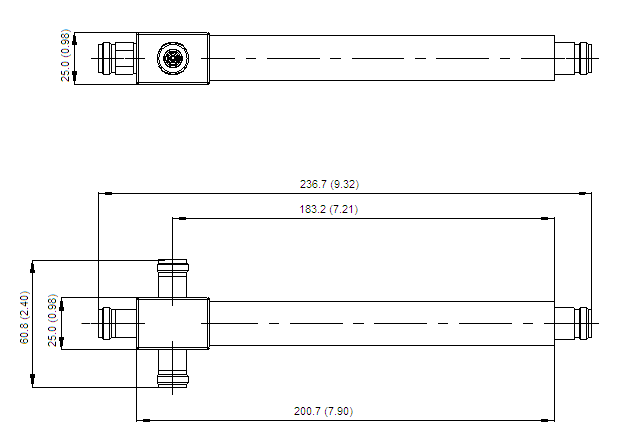

Dimensions mm(inch)

External Document Links

Notes

  • Mounting Hardware not included
