TER-43-3800-30W
Load, 4.3-10 male, 30 Watt

The TER Series are coaxial loads which operate from DC up to 3.8 GHz.The products are ideally suited for termination of unused ports in distributed antenna systems or in RADIAFLEX® radiating cables systems.

FEATURES / BENEFITS

  • Ideal for all kind of DAS applications
  • Finned termination for optimized heat disspation
  • Low VSWR

Technical features

General Specifications

Product TypeLoad
Techn. ApplicationIndoor

Electrical Specifications

Frequency Range MHzDC-3.800
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB/19
Total Input Power W30

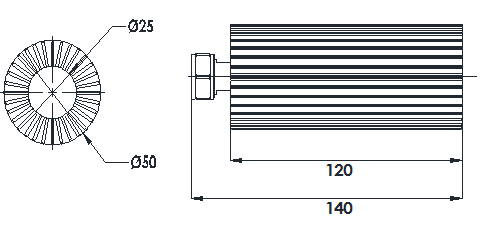

Mechanical Specifications

Input Connector Type4.3-10 male
Diameter mm (in)50 (1.97)
Length mm (in)140 (5.5)
Weight kg (lb)0.5 (1.1)

Temperature Specifications

Temperature Range °C (°F)-25 to 65 (-13 to 149)
Environmental ClassIndoor
