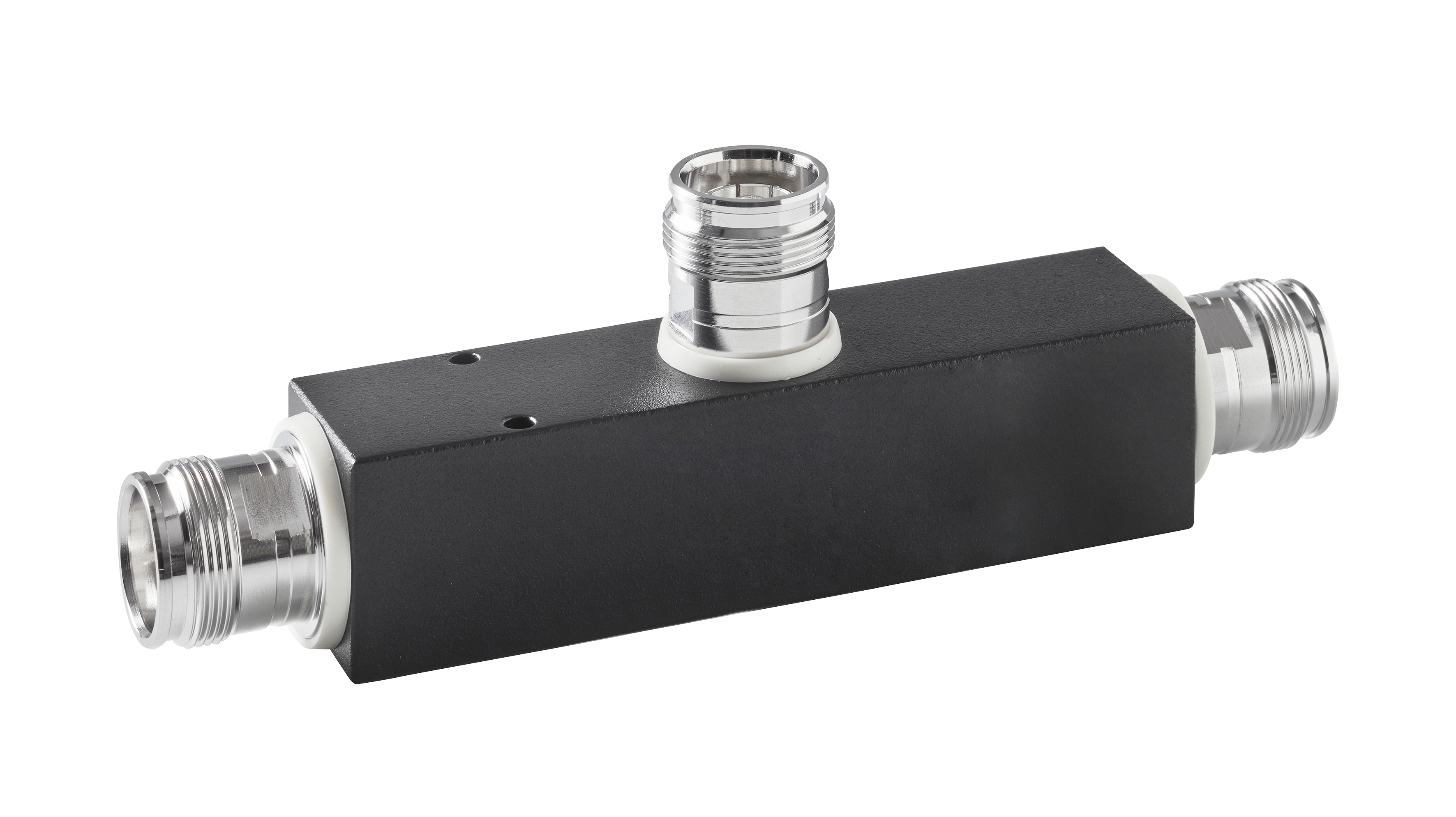

TPS10-43-350/2700-01
10dB Unequal Divider/Tapper

Rev : P1 | Rev date : 31 Jan 2025

PRODUCT DESCRIPTION

RFS TPS* Tapper product family has been designed to support a variety of wireless applications in the frequency band from 350 to 2700MHz. The units couple off a defined fraction of a RF signal from typically 5 to 30 dB with minimal reflections or loss. The broad frequency range is ideally suited for 3G / 4G multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables. Notably, these products feature a low level of network interferences due to their PIM optimized desing.

FEATURES / BENEFITS

  • Broadband 350-2700MHz
  • 4.3-10-female interfaces
  • PIM optimized design (163dBc @ 2x43dBm)
  • Ideal for all kind of DAS applications
  • Low insertion loss
  • High power handling
  • Small size, low weight

TECHNICAL FEATURES

Electrical Specifications
Frequency Range MHz 350-2700
Input Power W 300
PIM 3rd @2*43 dBm dBc 160
Input Impedance Ohm 50
Max. VSWR / Return Loss VSWR / dB

1.2 @ 350-960MHz,1800-2700MHz

1.3 @1710-1800MHz
Insertion Loss max. dB 0.1

Mechanical Specifications
Connectors   4.3-10 Female
Number of Input Ports   1
Number of Output Ports   2
Temperature Range °C -25 to +75
IP Level   IP65
RoHS   Compliant
Dimensions Height*Width*Length mm 89*32*32

Model Number Specifications
Model Number   TPS5-43-350/2700-01 TPS6-43-350/2700-01 TPS8-43-350/2700-01 TPS10-43-350/2700-01
Coupling Value dB 5 6 8 10
Coupling Flatness max. dB ± 1,0 ± 1,0 ± 1,2 ± 1,2

Model Number Specifications
Model Number   TPS13-43-350/2700-01 TPS15-43-350/2700-01 TPS20-43-350/2700-01 TPS30-43-350/2700-01
Coupling Value dB 13 15 20 30
Coupling Flatness max. dB +2,0 / -1,0

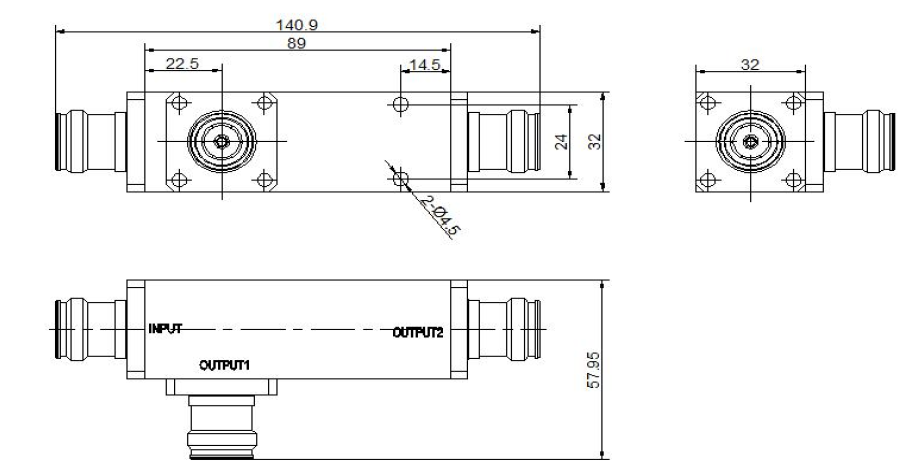

Product Drawing
