Optical Fiber Wall Outlet Box, surface mount including 2 or 4 x SC/APC adapters & pigtails

Rev : D | Rev date : 09 Mar 2023


Optical fiber wall outlet for local termination of up to four optical fibers.

The unit includes fiber management and splice protection together with up to four SC/APC adapters and pigtails.






  • Individual shutters provide dust protection for unused ports
  • Full fiber management ensures optimum optical performance
  • Splice protectors included
  • Optional power connector included

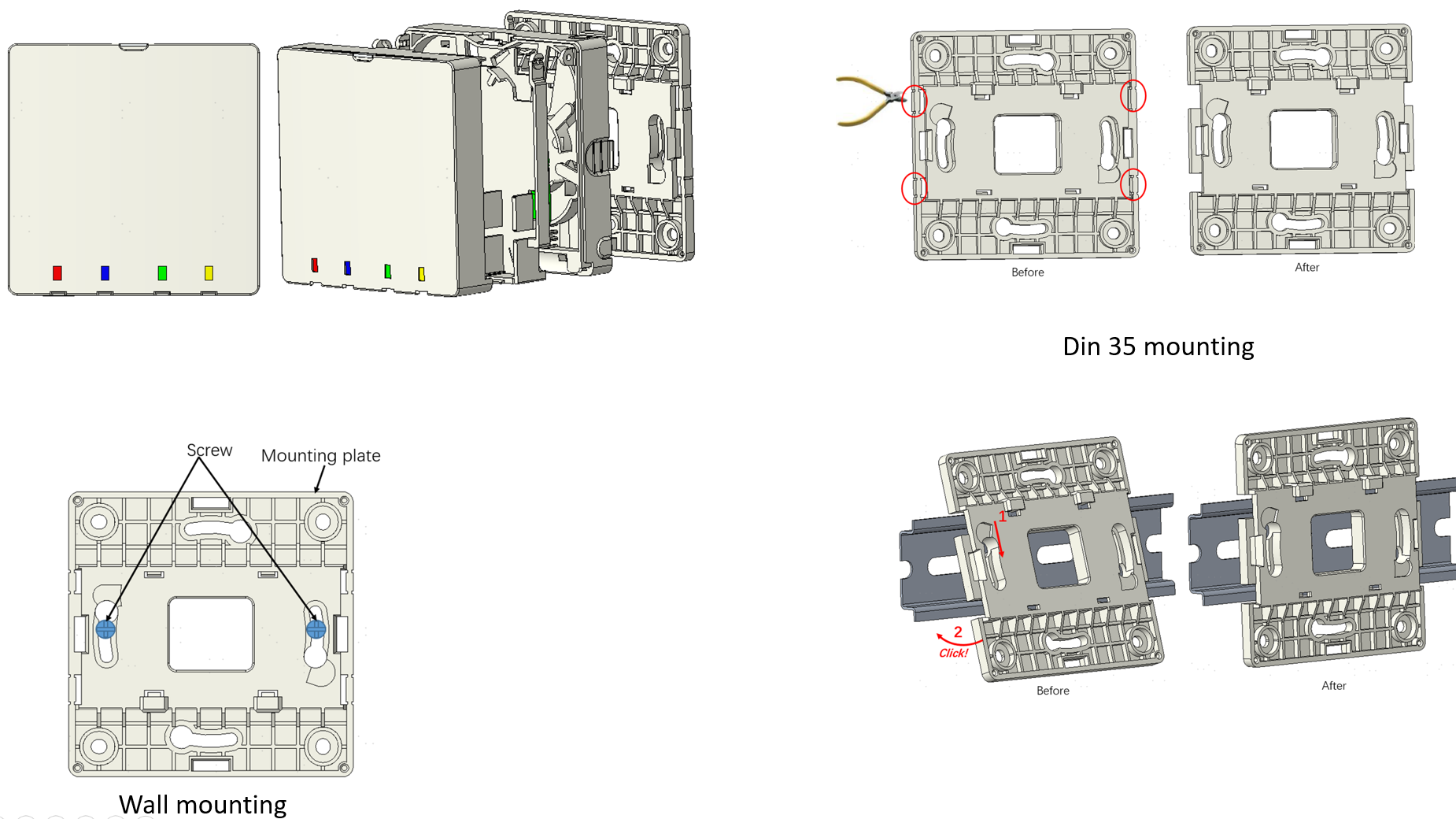

  • DIN 35 mountable




External Document Links


Technical features

General Specifications

Product TypeWall Outlet Box

Mechanical Specifications

MaterialABS or PC+ABS

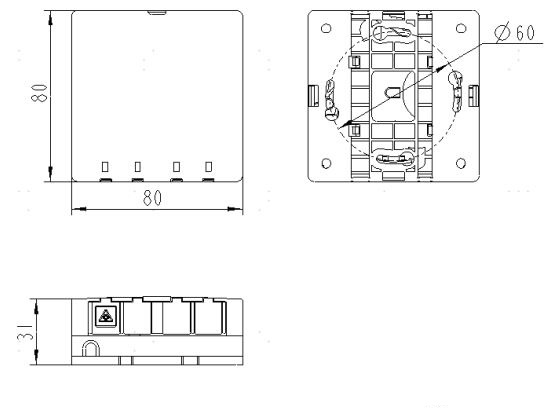

Dimensions (LxWxD) mm (in)80 x 80 x 31 (3.15 x 3.15 x 1.22)
MountingIP50 wall-mounted / recessed or DIN 35mm rail installation (IP40)

Testing and Environmental

Operation Temperature °C (°F)-20 to 65 (-4 to 149 )
Storage Humitity≤ 95% (+40 °C)

Cables Supported

Supported F/O ConnectionsSC/APC flangeless
Diameter of Jumper Cable mm (in)0.9 (0.035)

Family Information

Quantity of Adapters24
Quantity of Pigtails24

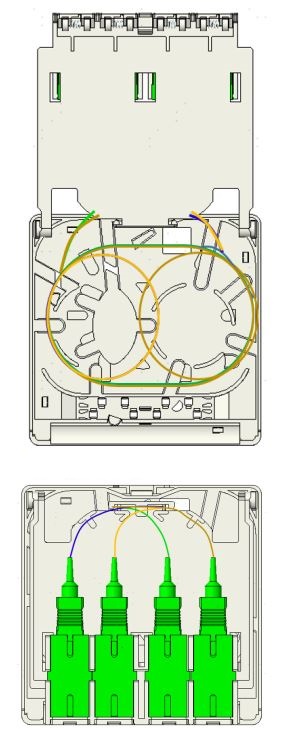

Backview of a double and single layer
