WOIF-0ZXXSS-APPD-YC
Hybriflex Wall Outlet Box with different options

Rev : A | Rev date : 19 Jan 2022

RFS' HYBRIFLEX  Optical fibre wall outlet is a fixed connection device, which is used to terminate the drop cable in the office area, residential area, business district, and is made up of bottom box and front cover.

Optical fibre wall outlet can be classified into exposed and concealed type for installation.













FEATURES / BENEFITS

  • Atmospheric pressure: 70kPa~106kPa
  • Cable types: drop cable, pigtail, outdoor cable(Φ8mm~Φ10.5mm)
  • Meet domestic standard Q/CT 2353-2011.


Technical features

General Specifications

Product TypeHybriflex Wall Outlet Box

Mechanical Specifications

Dimensions (LxWxD) mm (in)86 x 86 x 26 (3.38 x 3.38 x 1.02)

Testing and Environmental

Storage Temperature °C (°F)-40 to 70 (-40 to 158 )
Operation Temperature °C (°F)-40 to 60 (-40 to 140 )

Family Information

WOIF-0Z01SS-APPD-YCWOIF-0Z02SS-APPD-YC
Quantity of Adapters12
Quantity of Pigtails12

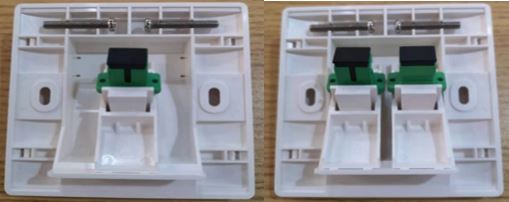

Backview of a double and single layer

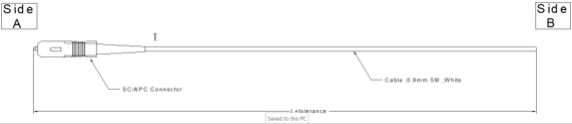

Drawing of a Pigtail
