43M-SCF12-C03
4.3-10 Male Connector for 1/2" Coaxial SuperFlexibleCable, OMNI FIT™ standard

Rev : B | Rev date : 07 Oct 2018
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminum) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications. The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque to meet PIM performance.

FEATURES / BENEFITS

  • Cost effective two-piece design for safe and easy installation
  • Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up, reduces the number of dropped calls and avoids revenue losses
  • Standard electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
  • Waterproof to IP 68 i.e. no downtime risk, secures revenue
  • RoHS (EU) compliant i.e. can be used on a global basis


43M-SCF12-C03

External Document Links

Notes

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1/2
Cable TypeFoam Dielectric Superflexible
Model SeriesSCF12-50 Series
Connector Interface4.3-10
Connector TypeOMNI FIT™ Standard
Sealing MethodO-ring
GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc
-162 ; typical -166
Maximum Frequency GHz6.0
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.03 (36.6)
1.0 < f ≤ 2.7 GHz: 1.04 (34.1)
2.7 < f ≤ 3.7 GHz: 1.08 (28.3)
3.7 < f ≤ 5.0 GHz: 1.10 (26.4)
5.0 < f ≤ 6.0 GHz: 1.25 (19.1)

Mechanical Specifications

Plating Outer/InnerTrimetal/Silver
Length mm (in)43.9 (1.73)
Outer Diameter mm (in)25 (1)
Inner Contact AttachmentBasket
Outer Contact AttachmentRigidity impaction

Accessories

Wrench size front mm (in)18 (3/4)
Wrench size rear mm (in)18 (3/4)
Trimming ToolTRIM-SET-S12-C02

Testing and Environmental

Waterproof LevelIP68

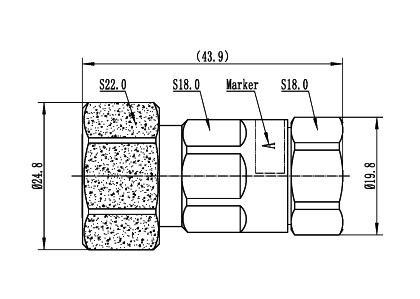

43M-SCF12-C03 Outline Drawing
