716F-SCF12-E01
7-16 DIN Female Connector for 1/2" Coaxial Cable, OMNI FIT™ Premium,
Straight, O-Ring and 360° compression sealing

Rev : B | Rev date : 06 May 2024
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment.
All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of o-ring and 360° compression fit.

FEATURES / BENEFITS

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


External Document Links

Notes

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1/2
Cable TypeFoam Dielectric Superflexible
Model SeriesSCF12-50 Series
Connector Interface7-16 DIN
Connector Type

OMNI FIT™ PREMIUM Straight

Sealing Method
O-ring + 360° Compression
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc

-163 ; typical -167

Maximum Frequency GHz6
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.2 GHz: 1.03 (37)
2.2 < f ≤ 2.7 GHz: 1.03 (36)
2.7 < f ≤ 3.8 GHz: 1.06 (31)
3.8 < f ≤ 5.0 GHz: 1.11 (26)
5.0 < f ≤ 6.0 GHz: 1.15 (23)

Mechanical Specifications

Plating Outer/InnerTri metal alloy / Silver

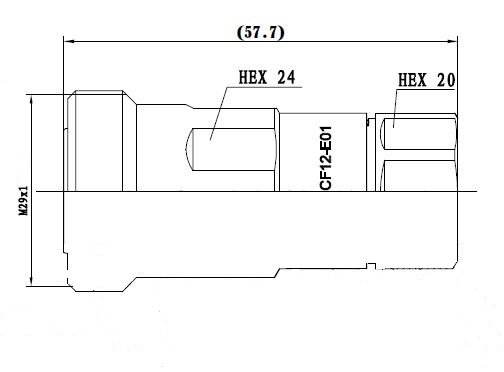

Length mm (in)57.7 (2.272)
Outer Diameter mm (in)26 (1.024)
Inner Contact AttachmentSpring Finger
Outer Contact Attachment360° clamping

Accessories

Wrench size front mm (in)24
Wrench size rear mm (in)20
Trimming ToolTRIM-12-S06
TRIM-SCF12-D01-A

Testing and Environmental

Waterproof LevelIP68
