LCF158-50JA
1-5/8" CELLFLEX® Premium Attenuation Low-Loss Foam-Dielectric Coaxial Cable

Rev : A | Rev date : 13 Dec 2021

CELLFLEX® 1-5/8" premium attenuation low loss flexible cable

FEATURES / BENEFITS

  • Ultra Low Attenuation

The reduced attenuation of CELLFLEX® coaxial cable results in extremly efficient signal transfer in your RF system, especially at high frequencies.

  • Complete Shielding

The solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.

  • Low VSWR

Special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise.

  • Outstanding Intermodulation Performance

CELLFLEX® coaxial cable's solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.

  • High Power Rating

Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels.

  • Wide Range of Application

Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects


Technical features

INFORMATION

ApplicationsMain feed line, intended for outdoor usage

STRUCTURE

Size1-5/8
Inner Conductormm (in)17.6 (0.693)
Inner Conductor MaterialCorrugated Copper Tube
Dielectricmm (in)42.4 (1.669)
Dielectric MaterialFoam Polyethylene
Outer Conductormm (in)46.4 (1.827)
Outer Conductor MaterialCorrugated Copper
Jacketmm (in)50.2 (1.976)
Jacket MaterialBlack Polyethylene

TESTING AND ENVIRONMENTAL

Phase Stabilized

Phase stabilized and phase matched cables and assemblies are available upon request.

Compliance

DIN EN ISO 9001:2015

ISO 14001:2015

RoHS 2011/65/EU - China RoHS SJ/T 11364-2006

REACH (EC 1907/2006)

UL1581 - UV Resistance Jacket

IEC 60754-1/-2

Installation Temperature °C(°F)-40 to 60 (-40 to 140)
Storage Temperature °C (°F)-70 to 85 (-94 to 185)
Operation Temperature °C(°F)-50 to 85 (-58 to 185)

ELECTRICAL SPECIFICATIONS

Impedance Ω50 +/- 1
Maximum Frequency GHz2.75
Velocity %90
Capacitance pF/m (pF/ft)74 (22.5)
Inductance uH/m (uH/ft)0.185 (0.056)
Peak Power Rating kW310
RF Peak Voltage Volts5600
Jacket Spark Volt RMS10000
Inner Conductor dc Resistance Ω/1000 m (Ω/1000 ft)1.3 (0.4)
Outer Conductor dc Resistance Ω/1000 m (Ω/1000 ft)0.47 (0.14)
Passive Intermodulation PIM min. dBc-160
Return Loss (VSWR) PerformanceStandard 20dB (1.222) / Premium 23/24dB (1.152/1.135) on specified frequencies

MECHANICAL SPECIFICATIONS

Cable Weight, Nominal kg/m (lb/ft)1.07 (0.72)
Minimum Bending Radius, Single Bendmm (in)200 (8)
Minimum Bending Radius, Repeated Bendsmm (in)500 (20)
Bending Moment Nm (lb-ft)42 (31)
Tensile Strength N (lb)2500 (562)
Recommended / Maximum Clamp Spacing m (ft)1.2 / 1.5 (4 / 5)

ATTENUATION @ 20°C (68°F) AND POWER RATING @ 40°C (104°F)

Frequency, MHzdB per 100mdB per 100ftPower, kW
10.060.02181.81
1000.640.2017.40
2000.930.2812.06
4501.440.447.78
7001.840.566.1
8001.980.605.66
9002.120.655.29
18003.160.963.55
20003.361.023.34
22003.561.083.15
24003.741.142.99
27004.021.222.79
27504.061.242.76

RELATED PRODUCTS

Connector Interface Standard Connector Series C02 Premium Connector Series E01 Premium Connector Series D01 / D02 *only on request

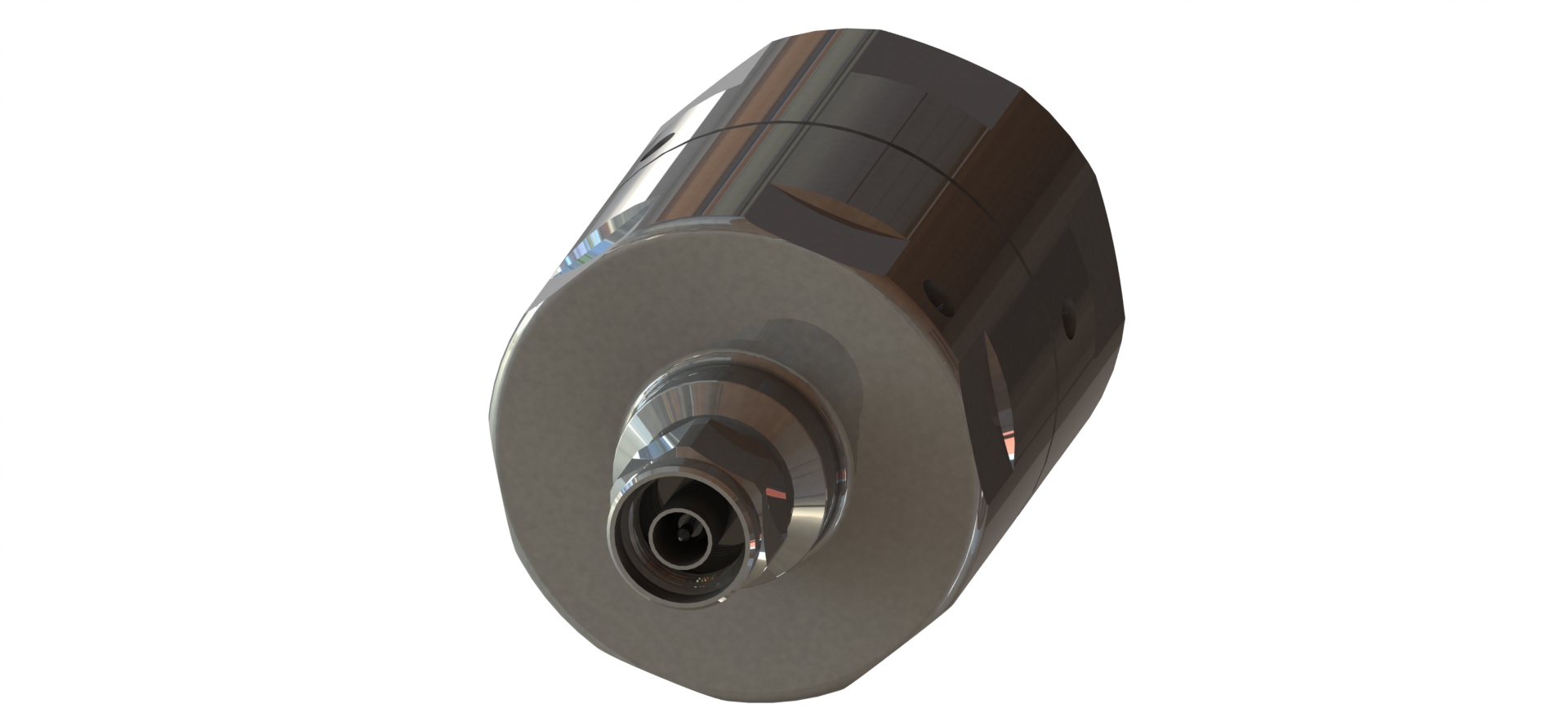

N Male  NM-LCF158-C02  NM-LCF158-E01 NM-LCF158-D01

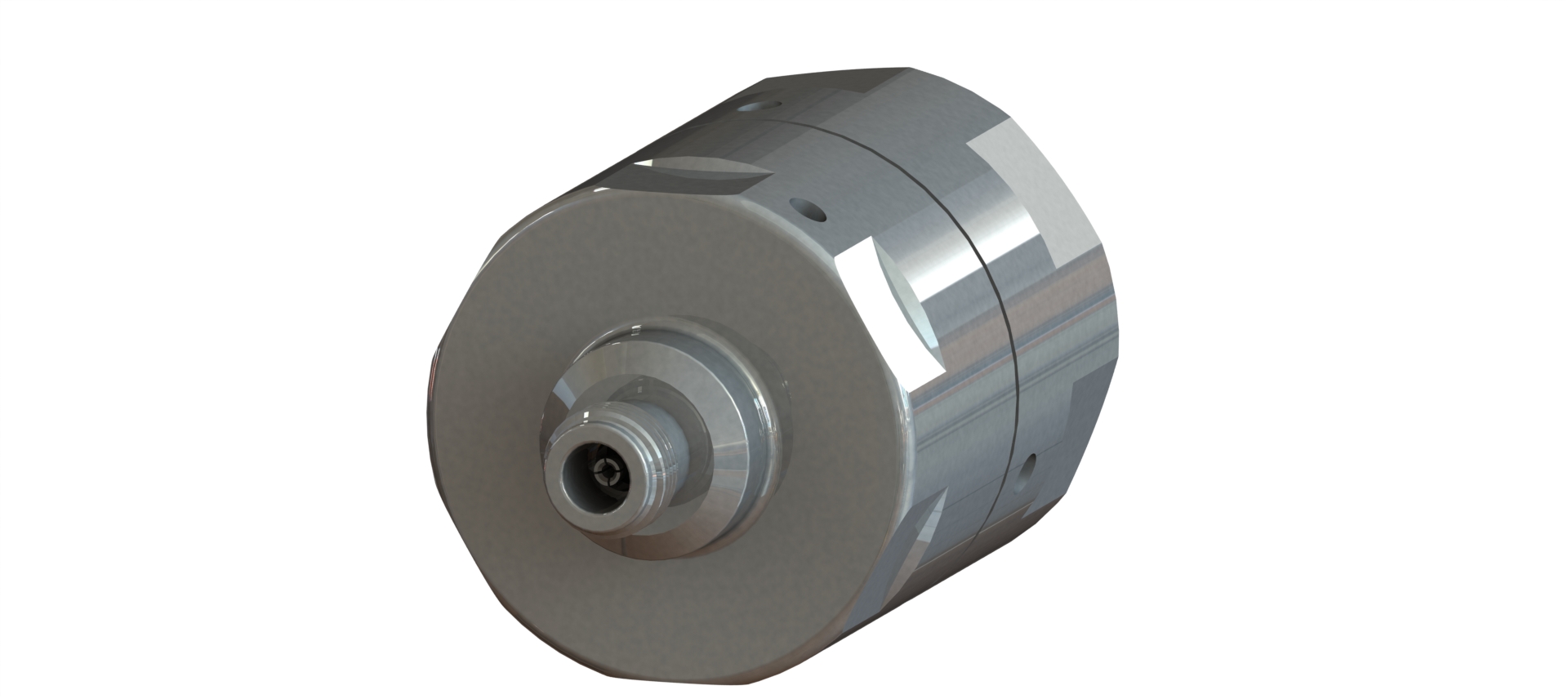

N Female NF-LCF158-C02  NF-LCF158-E01 NF-LCF158-D01
4.3-10 Male   43M-LCF158-E01  43M-LCF158-D02
4.3-10 Female   43F-LCF158-E01  43F-LCF158-D02
7/16 Male 716M-LCF158-C02  716M-LCF158-E01  716M-LCF158-D01
7/16 Female 716F-LCF158-C02 716F-LCF158-E01 716F-LCF158-D01
Mandatory Tool TRIM-SET-L158-C02 TRIM-SET-L158-D01
Tool Information Universal Trimming Tool For *-C02 Connector Series Universal Trimming Tool For *-D01 And *-E01 Connector Series
Installation Video **-LCF158-C02 **-LCF158-E01 **-LCF158-D01
General Accessories
Hand Tool Kit TRIM-T01
Stripping Tool For Grounding Kits JSTRIP-158-2
Grounding Kit GKSPEED20-158P
