NF-LCF158-C02
N Female Connector for 1-5/8" Coaxial Cable, OMNI FIT standard, O-ring sealing

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminum) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The N connector is one of the most common RF connector types and meets all requirements even under the most severe environmental conditions.

FEATURES / BENEFITS

  • Cost effective two-piece design for safe and easy installation
  • Compatible with copper and aluminium cable types i.e. one connector for both outer conductor materials eliminates the risk of faulty connector installation and helps to keep inventory down
  • Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up, reduces the number of dropped calls and avoids revenue losses
  • Standard electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
  • Waterproof to IP 68 i.e. no downtime risk, secures revenue
  • RoHS (EU) compliant i.e. can be used on a global basis


OMNI FIT™ Standard Connectors

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-5/8
Cable TypeFoam DielectricRadiating
Model SeriesLCF158-50 SeriesRCF158-50 Series
Connector InterfaceN
Connector TypeOMNI FIT™ Standard
Sealing MethodO-ring
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc-159 typical
Maximum Frequency GHz2.75
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.03 (36.3)
1.0 < f ≤ 2.2 GHz: 1.04 (34.1)
2.2 < f ≤ 2.75 GHz: 1.07 (30)

Mechanical Specifications

Plating Outer/InnerTrimetal/Silver

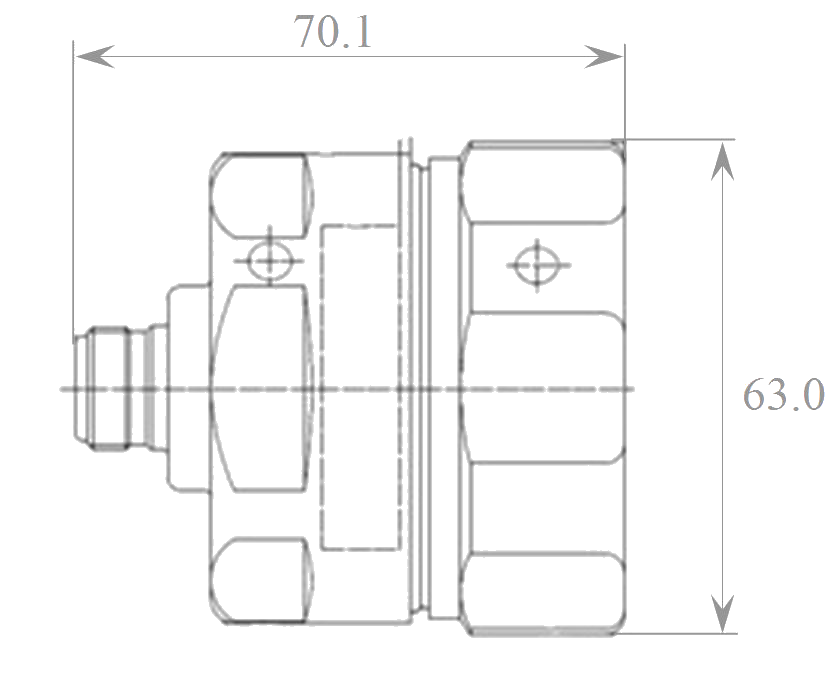

Length mm (in)70.1 (2.76)
Outer Diameter mm (in)63 (2.48)
Weight kg (lb)0.47 (1.04)
Inner Contact AttachmentSpring Finger
Outer Contact AttachmentSpring C-Ring

Accessories

Wrench size front mm (in)Open end wrench 55 (2-1/6)
Wrench size rear mm (in)Open end wrench 60 (2-1/3)
Poly Hook Spanner mm (in)PHS 60-90-5 Ø 60-90 (2.3-3.5) Pin 5 (0.2)
Trimming ToolTRIM-SET-L158-C02

Testing and Environmental

Waterproof LevelIP68
