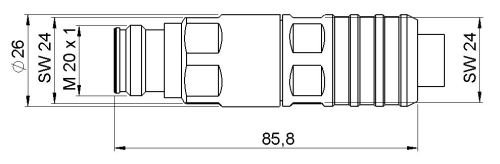

43F-RA12-P02
4.3-10 Female Connector for 1/2" RADIAFLEX® cable

Rev : A | Rev date : 14 Mar 2018

The P02 premium performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to RADIAFLEX® cables. The connectors should provide outstanding value to users because they permit quick, easy and reliable installation at any location, thereby allowing the operator flexibility while saving installation time and money.

FEATURES / BENEFITS

  • Designed for Fast and Easy Installation - Reliable and simple attachment avoids unnecessary 197 connector adjustments and provides
  • Outstanding performance. Saves time and provides cost savings
  • Robust Mechanical Design - Best in class PIM performance
  • Excellent Electrical Performance - Low VSWR
  • Totally Waterproof - Assures safe, long term operation in the harshest of environments.


43F-RA12-P02

Notes

  • In order to achieve the PIM specs. the use of the trimming tool is mandatory.



Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1/2
Cable TypeRadiating
Model Seriesall ALF and RLK-Series
Connector Interface4.3-10
Connector TypeStraight
Sealing MethodShrinking Sleeve
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc
-155 / -160 (typ.)
Maximum Frequency GHz6.0
VSWR, Return LossVSWR (dB) 0.0 - 1.0 GHz: 1.03 (36.6)
>1.0 - 2.0 GHz: 1.06 (30.7)
>2.0 - 3.0 GHz: 1.08 (28.3)
>3.0 - 4.0 GHz: 1.11 (25.7)
>4.0 - 6.0 GHz: 1.15 (23.1)

Mechanical Specifications

Length mm (in)85.8 (3.38)
Outer Diameter mm (in)26 (1.02)
Body MaterialBrass / Plating: Tri Metal
Inner Contact MaterialCopper / Plating: Silver
Inner Contact AttachmentSpring Finger / Plating: Silver
Outer Contact AttachmentSpring Loop / Plating: Silver

Accessories

Wrench size front mm (in)SW 24 (0.94)
Wrench size rear mm (in)SW 24 (0.94)
Trimming ToolTRIM-SET-R12-P02

Testing and Environmental

Waterproof LevelIP68
INSTALLATIONTEMPERATURECF °C(°F)-25 to 60 (-13 to 140)
STORAGETEMPERATURECF °C (°F)-70 to 85 (-94 to 185)
OPERATIONTEMPERATURECF °C(°F)-40 to 85 (-40 to 185)
