716M-RA78-015
7-16 DIN Male Connector for 7/8" RADIAFLEX® cable

Rev : B | Rev date : 20 Jul 2015
These single-piece high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to RADIAFLEX® cables. The connectors provide outstanding value to users because they permit quick, easy and reliable installation at any location, thereby allowing the operator flexibility while saving installation time and money. They attach to prepared cable in one piece assuring error-free attachment. All connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in both type N and 7-16 DIN interface.

FEATURES / BENEFITS

  • Single-piece design for Fast and Easy Installation - Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance. Saves time and provides cost savings.
  • Robust Mechanical Design - Low and consistent IM performance.
  • Excellent Electrical Performance - Low VSWR
  • Totally Waterproof - Assures safe, long term operation in the harshest of environments.


RADIAFLEX connector

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size7/8
Cable TypeRadiating
Model Seriesall RLF, RLK and RAY78-50A-Series
Connector Interface7-16 DIN
Connector TypeStraight
Sealing MethodShrinking Sleeve
GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
Maximum Frequency GHz3.7

Mechanical Specifications

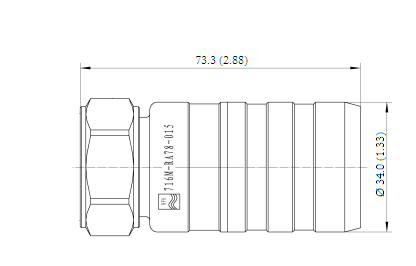

Length mm (in)73.3 (2.88)
Outer Diameter mm (in)34 (1.33)
Body MaterialBrass / Plating: Tri metal
Inner Contact MaterialCopper / Plating: Silver
Inner Contact AttachmentSpring Finger / Plating: silver
Outer Contact AttachmentSpring loop / Plating: silver

Testing and Environmental

Waterproof LevelIP68
