NF-HCA78-020
N Female Connector for 7/8" Coaxial Cable, RAPID FIT™ Sealing compound

Radio Frequency Systems line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to HELIFLEX® coaxial cables. RFS connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. The N connector is one of the most common RF connector types. N type connectors from RFS will be delivered with a non-slotted outer conductor contact sleeve and a special gasket. Due to a special design of the coupling nut (without spring ring) N connectors can be tightened with increased torque. This increases the contact pressure.

FEATURES / BENEFITS

  • Excellent gas tightness, Overpressure for increased voltage handling is maintained throughout the system
  • Robust Mechanical Design, Superior and consistent performance guarantees outstanding system characteristics.
  • Extremely low reflection factor, Outstanding low reflection factor improves overall system performance and margin and reduces mismatch losses
  • Totally Waterproof according to IP 68, Assures safe, long term operation in the harshest of environments. System tightness doesn't have to rely on overpressure from dehydration equipment.

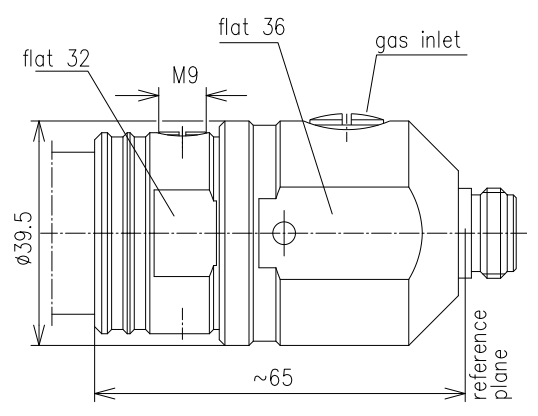

Connector N Socket CAF

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size7/8
Cable TypeAir Dielectric
Model SeriesHCA78-50 Series
Connector InterfaceN
Connector TypeRAPID FIT™
Sealing MethodSealing compound ¹ )
GenderFemale

Mechanical Specifications

Plating Outer/InnerSilver/Silver
Length mm (in)77 (3.03)
Outer Diameter mm (in)39.5 (1.55)
Weight kg (lb)0.33 (0.73)
Inner Contact AttachmentSpring Finger
Outer Contact AttachmentThreaded

Accessories

Wrench size front mm (in)36 (1-7/16)
Wrench size rear mm (in)32 (1-1/4)

Testing and Environmental

Sealing Volume, cm3 (ounces)cm³ (ounces)5 (0.17)

External Document Links

Notes

¹) The sealing compound must be ordered separately.
