MBH78-6-F
Double Multi-block hanger three layers, with angle member adapter


Double Multi block hanger support systems are designed for organizing bundled runs of coax cable.
Each space-saving block securely holds two runs of coax, allowing a compact bundle of up to 6x runs to be supported by stacking three blocks.

FEATURES / BENEFITS


MBH114-6-F for illustration purpose

Technical features

General Specifications

Product LineCoaxial Cable Accessories
Product TypeHanger
Hanger TypeSingle Multi-block
Transmission Line TypeUCF78
LCF78
ColorBlack

Mechanical Specifications

Cable Size7/8
Number of Cable / Waveguide Runs2 per layer, 3 layers, 6 runs
Configurationincl. Angle member adapter
Angle member adapter clamping range mm (in)4 / 24 (0.157 / 0.945 )
Angle member adpter threads2x M8
MaterialMetal parts:
-Connecting devices:Stainless steel
-Angle member adapter: Stainless steel
-Plastic parts: Polypropylene
Length mm (in)245 (9.65)
Height mm (in)85 (3.35)
Width mm (in)50 (1.96)
Recommended / Maximum Clamp Spacing m (ft)0.8 / 1 (2.75 / 3.25)

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity10
Weight per piece kg (lb)0.364 (0.8)
Weight per kit kg (lb)3.65 (8)
Box Dimensions (Bulk Shipping), L x W x Hmm (in)430 x 270 x 130 (16.93 x 10.63 x 5.12)

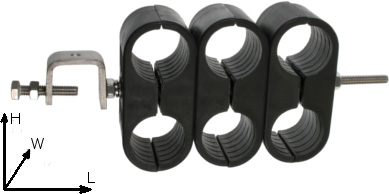

picture shows MBH114-6-F for illustration purpose
