MBHS78-3-F
Single Multi-block hanger three layer, with angle member adapter


Single Multi block hanger support systems are designed for organizing bundled runs of coax cable.
Each space-saving block securely holds one run of coax, allowing a compact bundle of up to 3x runs to be supported by stacking three blocks.

FEATURES / BENEFITS

  • Single Multi Blocks are manufactured of polypropylene providing thermal, chemical and UV resistance in all environments.
  • They come including angle member adapter and necessary hardware.
  • The angle member adapter fastens the clamp to the tower without drilling.
  • The angle member adapter includes a tower member set screw.
  • The hanger mounting rod may be located in either of two mounting holes, depending on orientation of the fixing member.
  • Compliant to RoHS (EU 2002/95/EC) and CRoHS (China SJ/T11363-2006) i.e. usable on a global basis.


MBHS78-3-F

Technical features

General Specifications

Product LineCoaxial Cable Accessories
Hybrid Cable Accessories
Product TypeHanger
Hanger TypeSingle Multi-block
Transmission Line TypeUCF78
LCF78
HB078
Cable TypeCoaxial Foam Dielectric
Hybrid
ColorBlack

Mechanical Specifications

Cable Size7/8
Number of Cable / Waveguide Runs1 per layer, 3 layers, 3 runs
Configurationincl. Angle member adapter
Angle member adapter clamping range mm (in)4 / 24 (0.157 / 0.945 )
Angle member adpter threads2x M8
MaterialMetal part: Stainless steel
Plastic parts: Polypropylene
Length mm (in)234 (9.21) see picture below (L)
Height mm (in)70 (2.73) see picture below (H)
Width mm (in)50 (1.96) see picture below (W)
Recommended / Maximum Clamp Spacing m (ft)0.8 / 1 (2.75 / 3.25)

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity10
Weight per piece kg (lb)0.288 (0.63)
Weight per kit kg (lb)3.1 (6.8)
Box Dimensions (Bulk Shipping), L x W x Hmm (in)270 x 230 x 115 (11.63 x 9.05 x 4.52)

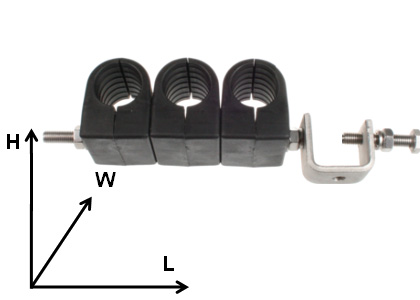

picture shows MBHS78-3-F for illustration purpose
