43F-RA158-P02
4.3-10 Female Connector for 1-5/8" RADIAFLEX® cable

The P02 premium performance coaxial cable connectors are designed specifically to provide the highestquality connector-cable interface while simplifying and speeding up the attachment of connectors to RADIAFLEX® cables. The connectors should provide outstanding value to users because they permit quick, easy and reliable installation

FEATURES / BENEFITS

  • Designed for Fast and Easy Installation - Reliable and simple attachment avoids unnecessary connector adjustments and provides
  • Outstanding performance. Saves time and provides cost savings
  • Robust Mechanical Design - Best in class PIM performance
  • Excellent Electrical Performance - Low VSWR
  • Totally Waterproof - Assures safe, long term operation in the harshest of environments.



43F-RA158-P02

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-5/8
Cable TypeRadiating
Model Seriesall RLF, RLK and RAY158-50A-Series
Connector Interface4.3-10
Connector TypeStraight
Sealing MethodShrinking Sleeve
GenderFemale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc
-155 / -160 (typ.)
Maximum Frequency GHz2.8
VSWR, Return LossVSWR (dB)0.0-1.0 GHz: 1.03 (36.6)
>1.0-2.0 GHz: 1.06 (30.7)
>2.0-2.8 GHz: 1.08 (28.3)

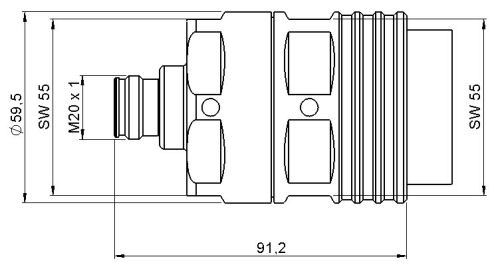

Mechanical Specifications

Length mm (in)91.2 (3.59)
Outer Diameter mm (in)59.5 (2.34)
Weight kg (lb)0.73 (1.609)
Body MaterialBrass / Plating: Tri Metal
Inner Contact MaterialCopper / Plating: Silver
Inner Contact AttachmentSpring Finger / Plating: Silver

Accessories

Wrench size front mm (in)SW 55 (2.16)
Wrench size rear mm (in)SW 55 (2.16)
Poly Hook Spanner mm (in)PHS60-90-5 Ø 60-90 (2.4-3.5)
Trimming ToolTRIM-SET-R158-P02

Testing and Environmental

Waterproof LevelIP68
INSTALLATIONTEMPERATURECF °C(°F)-25 to 60 (-13 to 140)
STORAGETEMPERATURECF °C (°F)-70 to 85 (-94 to 185)
OPERATIONTEMPERATURECF °C(°F)-40 to 85 (-40 to 185)

Notes

In order to achieve the PIM specs. the use of the trimming tool is mandatory.
