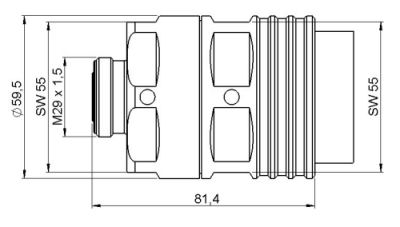

716F-RA158-P02
7-16 DIN Female Connector for 1-5/8" RADIAFLEX® cable
The P02 premium performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to RADIAFLEX® cables. The connectors should provide outstanding value to users because they permit quick, easy and reliable installation
FEATURES / BENEFITS
- Designed for Fast and Easy Installation - Reliable and simple attachment avoids unnecessary connector adjustments and provides
- Outstanding performance. Saves time and provides cost savings
- Robust Mechanical Design - Best in class PIM performance
- Excellent Electrical Performance - Low VSWR
- Totally Waterproof - Assures safe, long term operation in the harshest of environments
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
716F-RA158-P02
Technical features
|
|
|
|
|
Notes
In order to achieve the PIM specs. the use of the trimming tool is mandatory.
