HCH-158-1L4
Cable hanger for HELIFLEX® Air-dielectric coaxial cable

Hangers for the installation of HELIFLEX® cables on different supporting profiles.
Cable Clamp and Extended Counterbed hot-galvanized steel
Screw: stainless steel.

FEATURES / BENEFITS

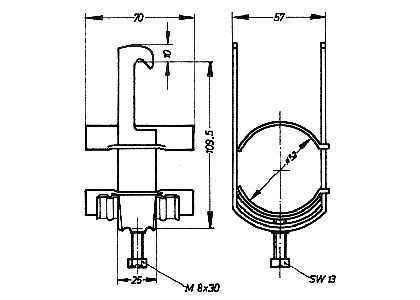

picture shows the 1L4 version
for illustration purpose only

Technical features

General Specifications

Product LineCoaxial Cable Accessories
Product TypeHanger
Hanger TypeAngle iron 40mm (1.575")
Transmission Line TypeHCA158
Cable TypeAir Dielectric
Coaxial Foam Dielectric

Mechanical Specifications

Cable Size1-5/8
MaterialCable Clamp : hot-dip galvanized
Extended Counterbed : hot-dip galvanized
Screw: Stainless steel
Recommended / Maximum Clamp Spacing m (ft)0.8 / 1.2 (2.75 / 4)

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity1
Weight per piece kg (lb)0.2 (0.44)

External Document Links

Notes

Hangers for angle iron 40mm (1.575")
