78EIA-HCA158-001
7/8" EIA Connector for 1-5/8" Coaxial Cable, Gas Barrier, Plast 2000 sealing

Rev : D | Rev date : 03 Jan 2025

Radio Frequency Systems line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to HELIFLEX® coaxial cables. RFS connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. To join two cables with EIA connectors, two identical socket connectors are installed on either end of the cables to be joined, and a coupling element is used to make the connection of the center conductor. The coupling element and sealing compound must be ordered separately. Connectors are available in sizes matching the nominal cable size. EIA connectors provide optimal power handling for the complete transmission line system.

FEATURES / BENEFITS

  • Solderless - Captivated spring finger contacts permit quick, easy and precise solderless installation utilizing only basic hand tools. Avoids the high impedance risk associated with soldering.
  • Corrosion-Proof Silver Plated Contacts - Featured even on standard connectors. Provide improved contact resistance and lower intermodulation.
  • Outstanding Electrical Performance - Metal to Metal contact between cable and connector - no plastic parts used. Secure connection highly resistant to pull-off or twist-off provides long-term mechanical integrity. Resistant to intermodulation after temperature cycling.
  • Easy to Install - No special tools needed. Only basic hand tools required. No additional costs to the installer.
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


Connector 7/8" EIA

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-5/8"
Cable TypeAir Dielectric
Model SeriesHCA158-50 Series
Connector Interface7/8" EIA
Connector Type

Gas Barrier

Sealing Method

Silicone compound PLAST 2000

GenderNone

Electrical Specifications

VSWR, Return LossVSWR (dB)DC to 1000 MHz: 1.02 (40)
1000 to 2700 MHz: 1.06 (30.7)

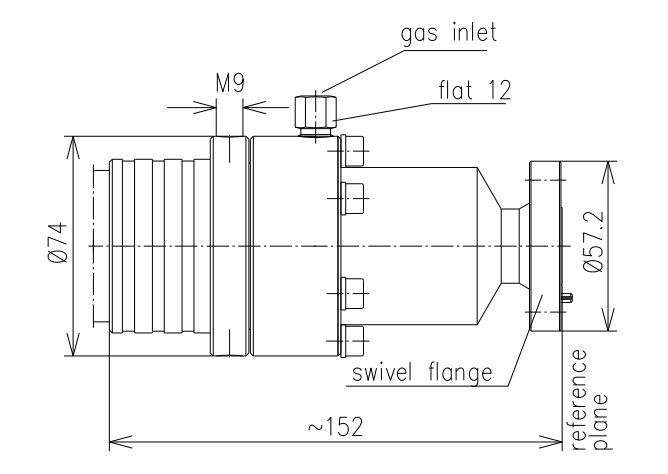

Mechanical Specifications

Plating Outer/Innersilver-plated / silver-plated
Length mm (in)152 (5.984)
Outer Diameter mm (in)74 (2.913)
Weight kg (lb)1.8 (3.968)
Body MaterialCopper-alloy
Inner Contact MaterialCopper-alloy
Inner Contact AttachmentThreaded
Outer Contact AttachmentTab Flare

Notes

Sealing compound must be ordered separately

Coupling element must be ordered separately
