716M-LCF114-D01
7-16 DIN Male Connector for 1-1/4" Coaxial Cable, OMNI FIT™ Premium,
Straight, O-Ring and compression sealing

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.

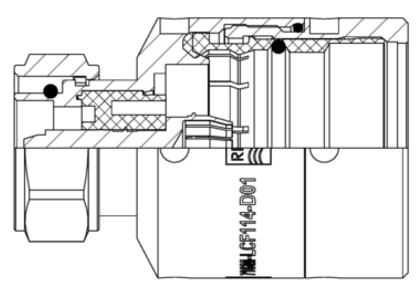

The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of O-Ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

FEATURES / BENEFITS

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process

  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


OMNI FIT™ Premium Connectors

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-1/4
Cable TypeFoam Dielectric

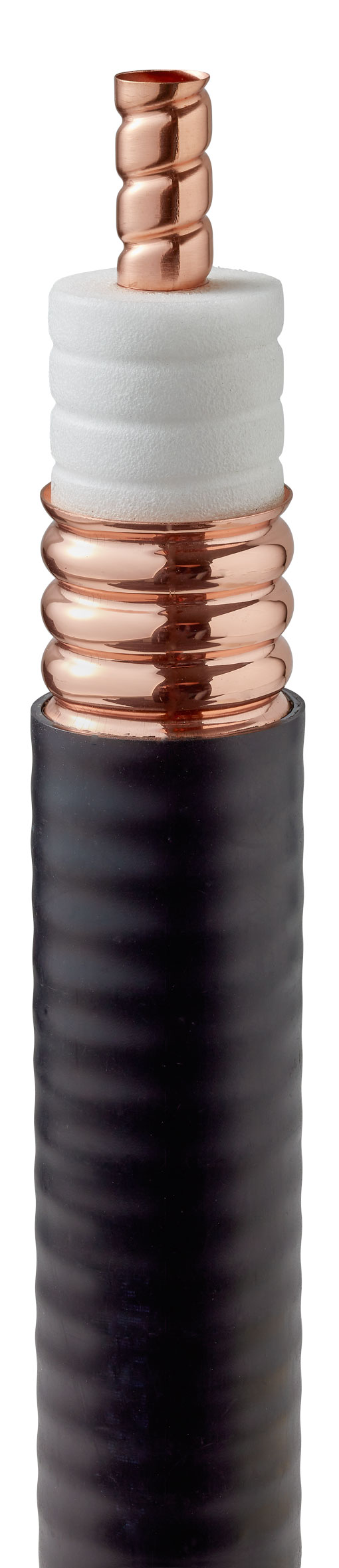

Model SeriesUCF114-50 Series, LCFS114-50 Series, RCF114-50 Series
Connector Interface7-16 DIN
Connector TypeOMNI FIT™ PREMIUM Straight
Sealing MethodO-Ring + 360° Compression
GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc-163 ; typical -167
Maximum Frequency GHz 3.6
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.2 GHz: 1.04 (34.1)
2.2 < f ≤ 2.7 GHz: 1.06 (30.7)
2.7 < f ≤ 3.6 GHz: 1.08 (28.3)

Mechanical Specifications

Plating Outer/InnerNiTin/Silver

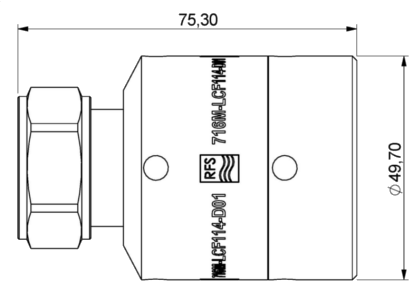

Length mm (in)75.25 (2.96)
Outer Diameter mm (in)49.5 (1.95)
Weight kg (lb)0.35 (0.77)
Inner Contact AttachmentSpring Finger
Outer Contact Attachment360° clamping

Accessories

Poly Hook Spanner mm (in)PHS 60-90-5 Ø 60-90 (2.3-3.5) Pin 5 (0.2)
Trimming ToolTRIM-SET-L114-D01
TRIM-LCF114-D01-A

Testing and Environmental

Waterproof LevelIP68
