GKSPEED20-114P
High speed grounding kit for CELLFLEX® LCF 114

Rev : I | Rev date : 08 Jul 2021

This Grounding Kit has been developed by RFS for the CELLFLEX® cable series. The Grounding Kit body facilitates a proper attachment to the coaxial cable, ensuring that the performance of the coaxial cable is not being compromised. The tin plated copper mesh provides a secure, low resistance contact to the cable outer conductor. The installation only takes a few minutes. No additional sealing with mastic and electrical tape required.

FEATURES / BENEFITS

  • Compatible with both copper and aluminium cable types i.e. one Grounding Kit for both outer conductor materials eliminates the risk of faulty Grounding Kit installation and helps to keep inventory down.
  • This kit has been verified by independent labs to withstand the damaging effects of lightning current in excess of 100kA 8/20µs. The copper wire provides the most practical and effective low inductance transfer of lightning induced current to ground.
  • No influence on the electrical transmission characteristics of the coaxial cable.
  • Robust mechanical design.
  • UV resistant according to DIN EN ISO 4892-2 (Plastics - Methods of exposure to laboratory light sources - Part 2 Xenon-arc-lamps).
  • Ozone resistant according to DIN 53509 (Testing of rubber - Determination of resistance to ozone cracking).
  • Compliant to RoHS (EU 2002/95/EC) and CRoHS (China SJ/T11363-2006) i.e. usable on a global basis.

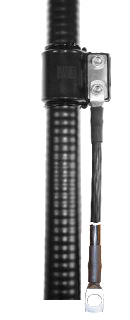

GKSPEED20-78P shown for illustration

External Document Links

Notes

Datasheet also applies to GKSPEED20-114GRP (gray) except for grounding wire color

Technical features

Structure

Product LineCoaxial Cable Accessories
Hybrid Cable Accessories
Type of Grounding KitHigh Speed
Transmission Line TypeLCF114, UCF114, HB114
Cable TypeCoaxial Foam Dielectric, Hybrid
Cable Size1-1/4"
Number of Cable / Waveguide Runs1
Material

Grounding Kit Body: Stainless steel, with vulcanised EPDM (Ethylene-Propylene-Caoutchouc)
Screws: Stainless steel with safety washers
Contact element: Tin-plated copper mesh

Accessories

Recommended ToolJSTRIP-114-2

Mechanical Specifications

Lug Attachment MethodFactory Attached
Lug Style Size

1-hole Ø 10.2mm (13/32") crimp-on, tin-plated

Grounding Wire Length m (in)0.5 (20)
Grounding Wire Sizemm²

16mm2 (7x7 strand)

Grounding Wire ColorBlack
Grounding Body ColorBlack
Sealing ClassIP68

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity1
Weight per piece kg (lb)0.3 (0.66)


GKSPEED20-78P shown for illustration
