COLD-021
Cold shrink tube, 1/2" to 5/8", 5/8" to 7/8"

RFS cold shrink tubes provide a additional sealing of feeder connections.
With the included foam strips a sealing class IP68 is guaranteed
even with scratches on the jacket surface.
The materials are selected for a long-term outdoor use.

FEATURES / BENEFITS

  • RFS offers a timesaving and easy way to secure a waterproof protection.
  • No tools are necessary for installation.

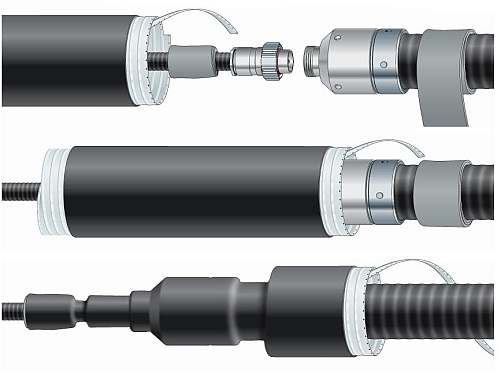

  • The shrinking process is done by simply unwinding a removable core.


Technical features

Structure

Product LineCoaxial Cable Accessories
Product TypeWeather Seal Kit
Coaxial Cable TypeFoam Dielectric

Mechanical Specifications

Mated to Cable Size and Interface1/2" to 5/8", 5/8" to 7/8", up to and including 7-16 DIN connectors
ColorBlack
MaterialCold shrink tube: Made of EPDM rubber
Foam strips: Made of self bonding Foam PE
Sealing ClassIP68
Length mm (in)254 (10)

Temperature Specifications

Operation Temperature, °C°F)°C(°F)-50 to 100 (-58 to 212 )
Storage Temperature °C(°F)-50 to 100 (-58 to 212 )

Packaging Information

Package Quantity1
